50W Highbay Light Industrial

HL-I-50 IP66 120° CRI ≥ 80

Short link: xeratech.in/products/HL-I-50

4.5 | 23 reviews
₹1,600 ₹1,760 9% OFF

Excl. GST  |  Min. 2 units  |  In stock: 1,000 units

Select Wattage:
50W ₹1,600 100W ₹3,000 150W ₹3,350 200W ₹3,800 250W ₹4,900
Colour Temperature:
Cool White Natural White Warm White
Quantity

Min. 2 units

WhatsApp
2 Years Warranty Pan-India Delivery 7 days Returns ISO, BIS, NSIC, NABL & more Made in Nashik, India

Key Highlights

50W
Wattage
2 Years
Warranty
IP66
IP Rating
120°
Beam Angle
≥ 80
CRI
50,000 hr
LED Life
≥ 0.95
Power Factor
1,100g
Weight

Why Choose the 50W Highbay Light

💡
Up to 65% Energy Saving
Replaces a typical 150W halogen highbay light while consuming only 50W, cutting running cost by up to 65%.
🌧️
IP66 Weatherproof
Completely dust-tight and protected against powerful water jets from any direction — built for India's monsoons, heat, and industrial environments.
🕐
50,000 hr LED Life
With 50,000 hr rated life and 90% LED efficiency, expect years of maintenance-free outdoor lighting.
⚡
Wide Voltage: 90V – 300V AC
Works on 90V – 300V AC — handles Indian grid fluctuations, load-shedding, and voltage surges without damage.
🏆
ISO, BIS, NSIC, NABL & more Certified
Carries ISO, BIS, NSIC, NABL, ZED, PWD, ERDA, GeM, NMC certification — accepted in government tenders, municipal projects, and industrial procurement.
🌡️
-20°C to 50°C Operating Range
Performs reliably from icy northern winters to scorching Rajasthan summers — no derating, no shutdown.

Electricity Saving Calculator

See how much you save by switching to the 50W LED Highbay Light from traditional metal-halide lights.

₹0
Annual Saving
₹0
Monthly Saving
0 mo
Payback Period

Product Description

The 50W Highbay Light Industrial is a 50W LED Highbay Light manufactured by Xera Tech in Nashik, Maharashtra. Designed for demanding outdoor and industrial environments, this IP66 highbay light is built for long, dependable outdoor service — making it one of the most durable outdoor highbay lights available in India.

Powered by 90% efficient LEDs with a rated life of 50,000 hr, this 50W outdoor highbay light delivers a 120° beam angle and CRI of ≥ 80 — ensuring excellent colour rendering for streets, warehouses, facades, and industrial campuses. The Aluminium Die cast housing provides structural rigidity and efficient heat sinking, critical for continuous-duty outdoor installations.

Operating on a wide input of 90V – 300V AC at 50Hz, with built-in 6kV surge protection and a power factor of ≥ 0.95, this IP66 highbay light is purpose-engineered for Indian grid conditions — including rural areas with frequent voltage fluctuations and load-shedding. Operating temperature range: -20°C to 50°C.

Certified ISO, BIS, NSIC, NABL, ZED, PWD, ERDA, GeM, NMC, the 50W Highbay Light Industrial is pre-qualified for government tenders, municipal infrastructure bids, and private industrial procurement across India. Applications include: Outdoor Lighting, Industrial Lighting, Campus, Streets, Highways, Factories.

As a leading LED highbay light manufacturer in Nashik, Maharashtra, Xera Tech supplies this product pan-India with 2 Years manufacturer warranty and 7 days return policy (HSN: 9405 40 90). The Isolated driver also carries a 2 Years warranty, ensuring your total cost of ownership remains predictable over the fixture's lifetime.

Full Technical Specifications

Brand Xera Tech
SKU / Model HL-I-50
Wattage 50W
LED Efficiency 90%
LED Life 50,000 hr
CRI ≥ 80
Beam Angle 120°
IP Rating IP66
Housing Aluminium Die cast
Driver Type Isolated
Driver Efficiency 90%
Power Factor ≥ 0.95
Voltage Range 90V – 300V AC
Frequency 50Hz
Surge Protection 6kV
Operating Temp. -20°C to 50°C
Dimensions (H×W×D) 185mm × 185mm × 110mm
Package Dims. 205mm × 205mm × 130mm
Weight 1,100g
Mounting Pipe ID Standard
Body Colour White
Colour Variants Cool White,Natural White,Warm White
Warranty 2 Years
Driver Life 2 Years
Application Outdoor Lighting, Industrial Lighting, Campus, Streets, Highways, Factories
Certifications ISO, BIS, NSIC, NABL, ZED, PWD, ERDA, GeM, NMC
Customer Segment Municipal Bodies, Government Tenders, Factories, Warehouses, Commercial Buildings, Housing Societies
Min. Order Qty 2 units
HSN Code 9405 40 90
Return Policy 7 days

Key Features

High Transparency Durability UV Protection Energy Efficiency Easy Maintenance

Certifications

ISO
BIS
NSIC
NABL
ZED
PWD
ERDA
GeM
NMC

Applications

Outdoor Lighting
Industrial Lighting
Campus
Streets
Highways
Factories

50W Highbay Light Industrial: Photos, Infographics & Use Cases

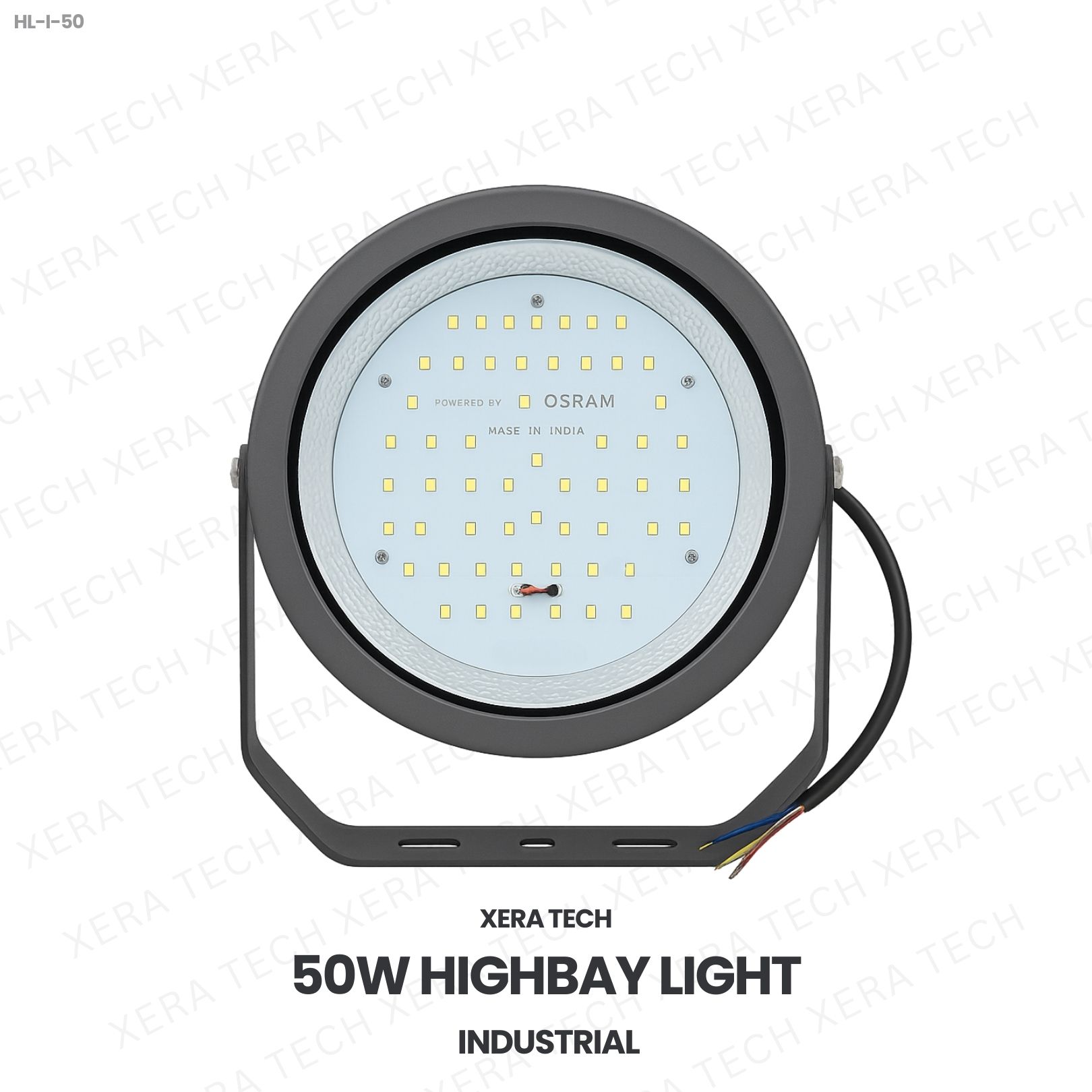

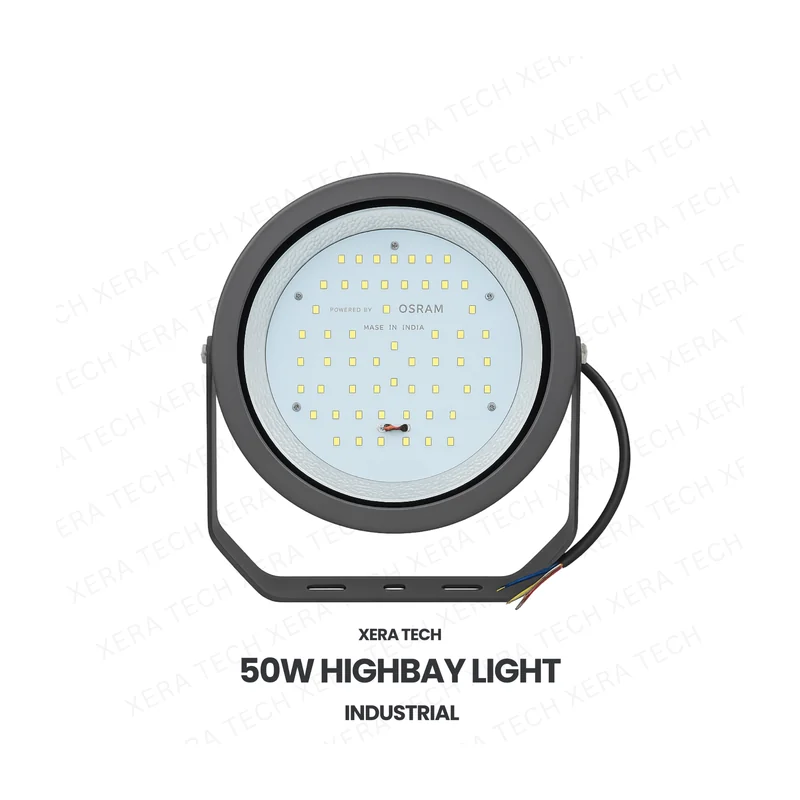

Xera Tech 50W Highbay Light Industrial – front view of the 50W LED High Bay Light
Front view of the Xera Tech 50W LED High Bay Light.

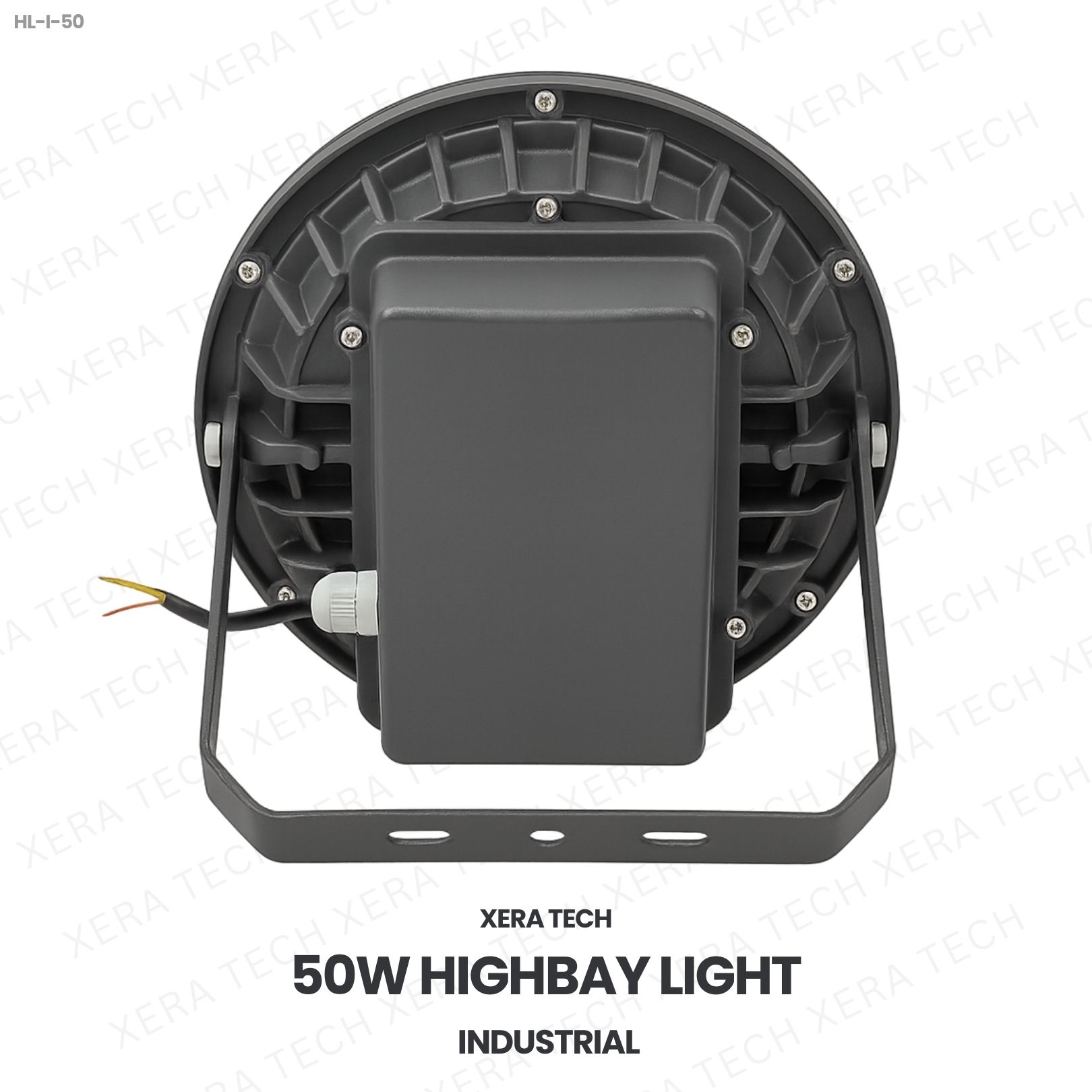

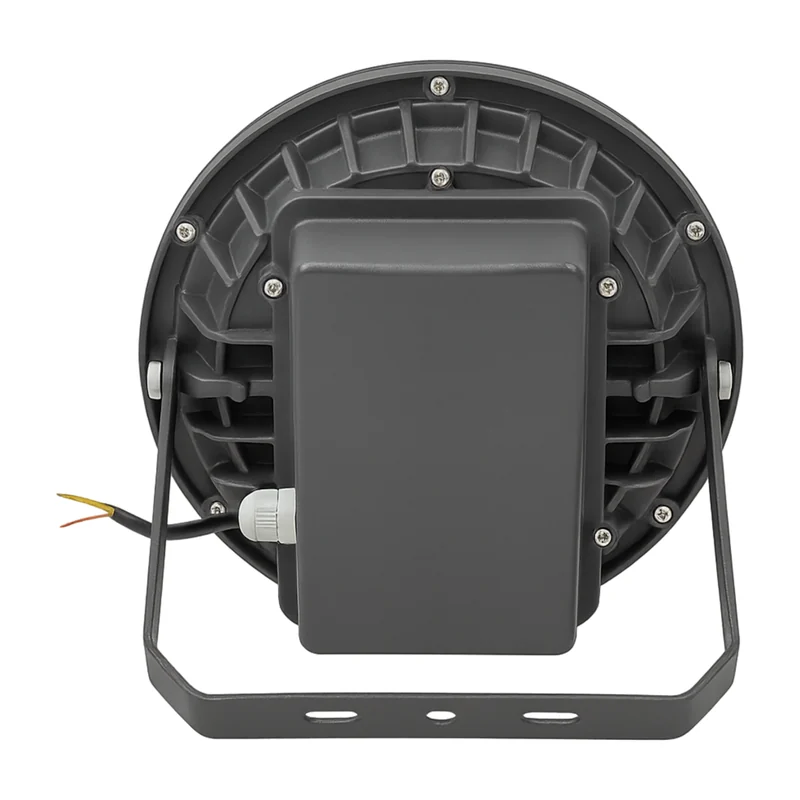

Xera Tech 50W LED High Bay Light back view showing the housing, driver and mounting
Back view of the 50W LED High Bay Light.

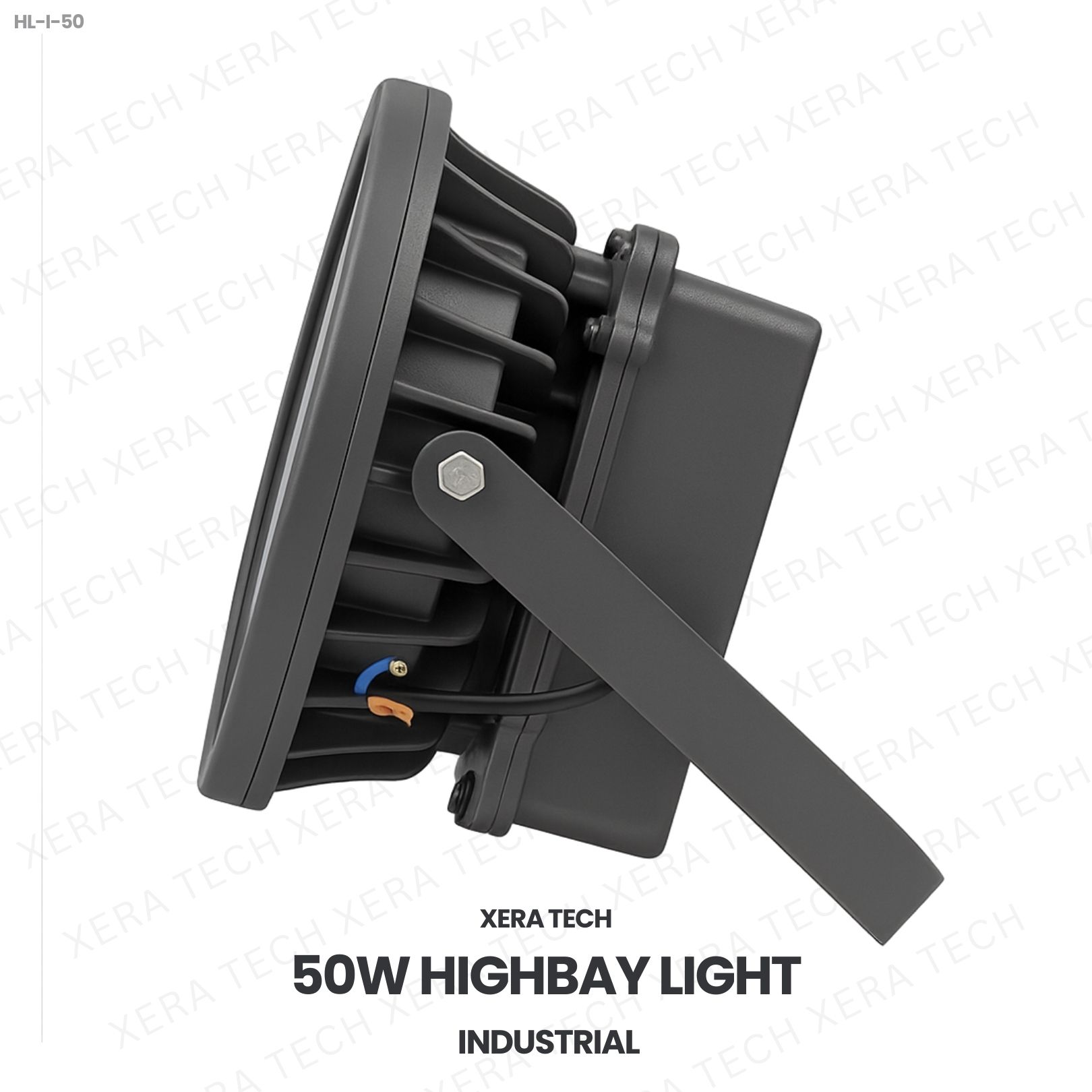

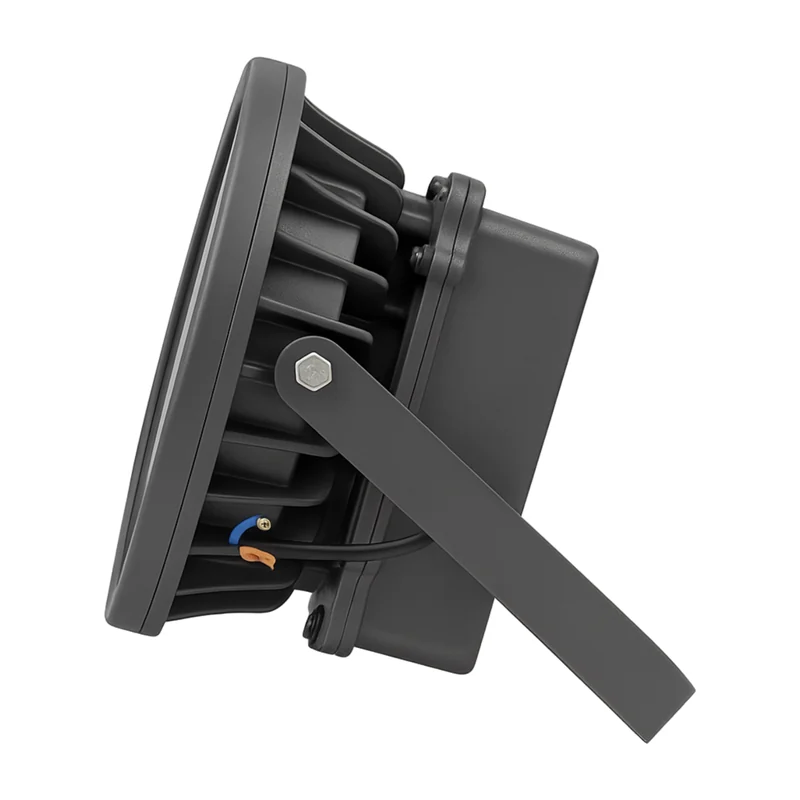

Xera Tech 50W LED High Bay Light side profile
Side profile of the 50W LED High Bay Light.

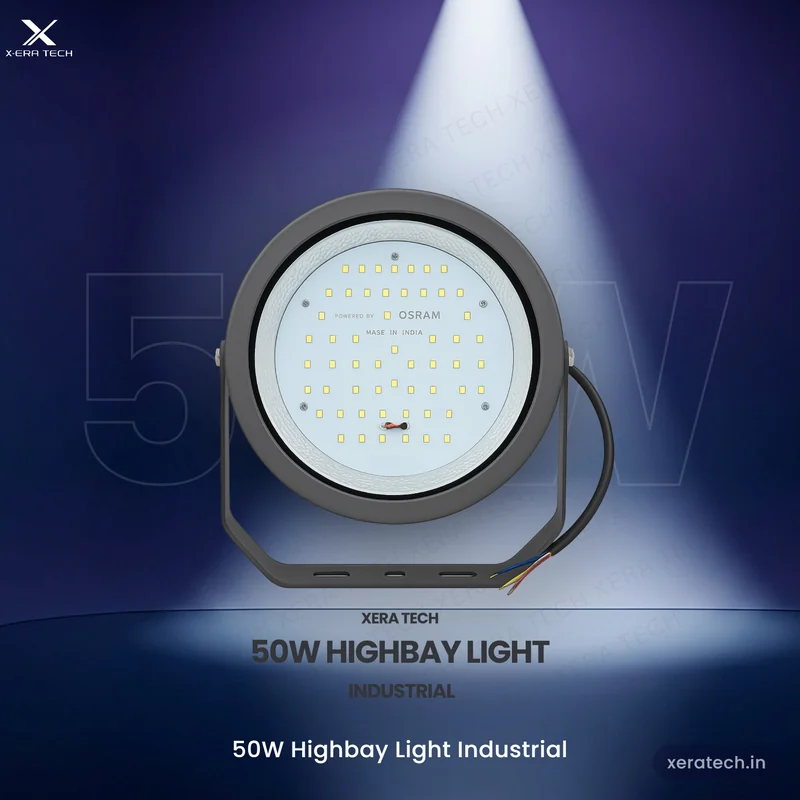

Xera Tech 50W LED High Bay Light – made in Nashik, Maharashtra
Xera Tech 50W LED High Bay Light.
Xera Tech 50W LED High Bay Light with IP66 rating – dust-tight and protected against powerful water jets
IP66: fully dustproof and protected against powerful water jets.
Xera Tech 50W LED High Bay Light input range 90V – 300V AC at 50Hz
Works on 90V – 300V AC at 50Hz.

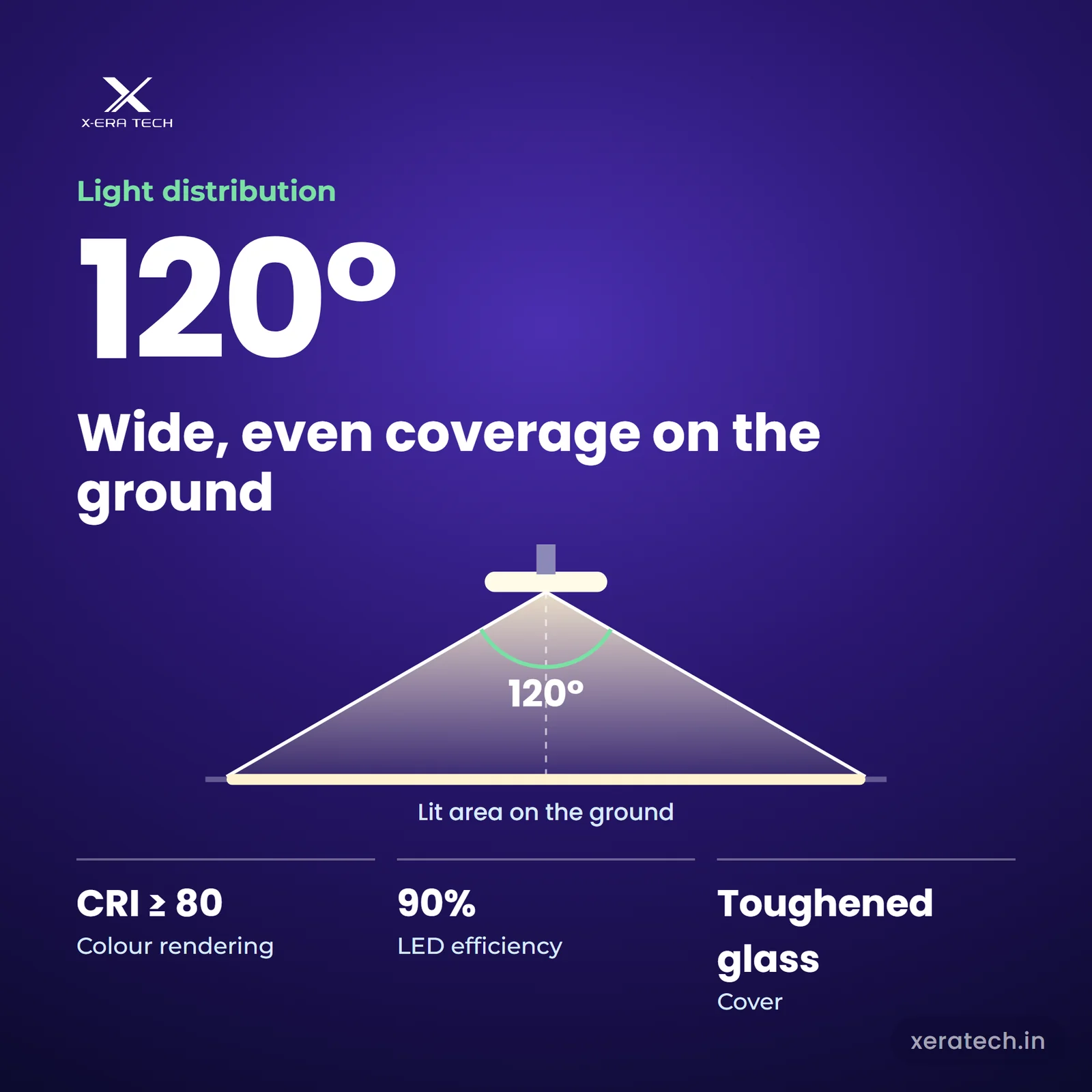

Xera Tech 50W LED High Bay Light 120° beam angle light distribution diagram
120° beam angle.
Xera Tech 50W LED High Bay Light rated LED life 50,000 hr, about 11 years at 12 hours a night
Rated LED life of 50,000 hr, about 11 years at 12 hours a night.
Xera Tech LED High Bay Light manufacturer in Nashik, Maharashtra – 2 Years warranty, pan-India delivery
Manufactured in Nashik, Maharashtra and shipped across India.

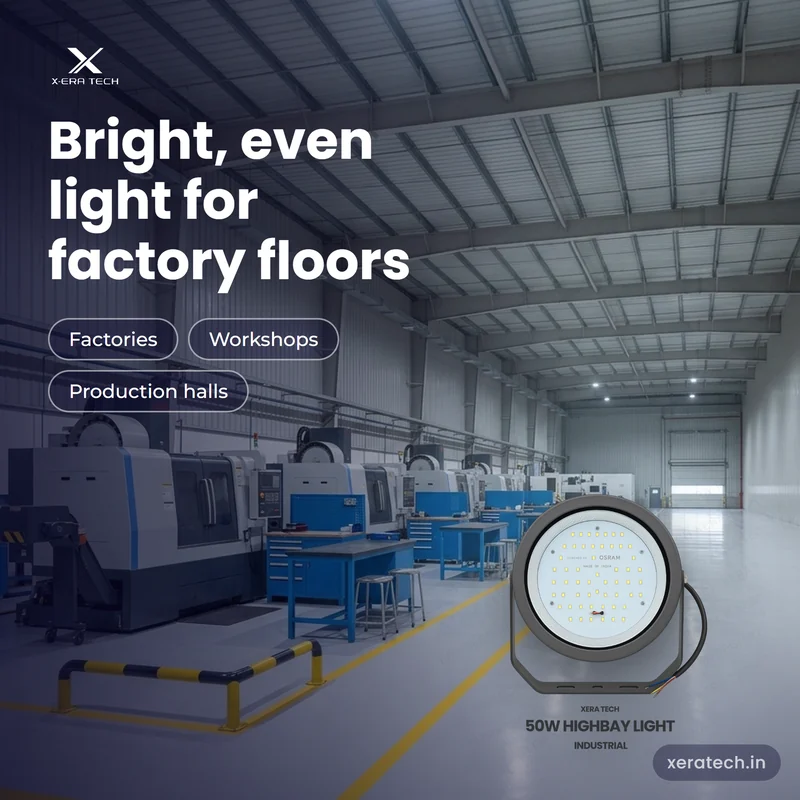

Xera Tech 50W LED High Bay Light for factory floors
For factories, workshops and production halls.

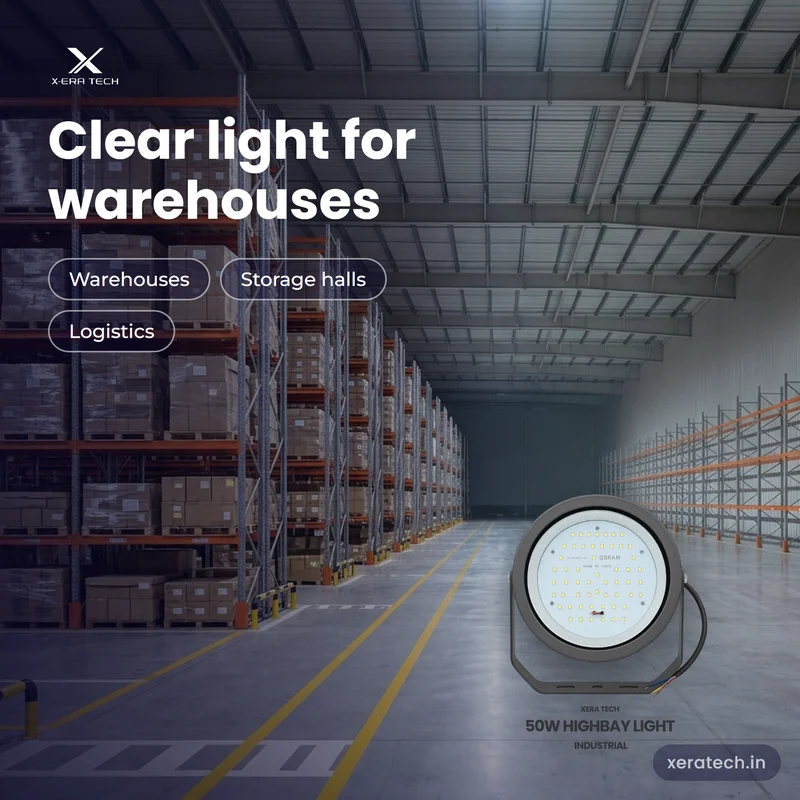

Xera Tech 50W LED High Bay Light for warehouses
For warehouses, storage halls and logistics.

How to Install the 50W Highbay Light Industrial

Complete installation guide for the 50W Highbay Light (Industrial, Regular). Required supplies: Light , Aluminium Armoured Cable, Cable, DP MCB, DWC Pipe, Earthing Pipe & Wire, Feeder Panel , FRP Box, MSB.

1
Fix the bracket
Secure the highbay light bracket to the mounting surface (wall, pole, or structure) using M8 or M10 bolts. Ensure the surface can bear at least 1100g.
2
Route the wiring
Route 3-core (L, N, E) cable rated for 90V – 300V AC through the conduit to the junction point. Minimum wire gauge: 1.5 mm².
3
Connect terminals
Connect Live (L), Neutral (N) and Earth (E) to the corresponding terminals in the Isolated driver. The driver supports 90V – 300V AC at 50Hz.
4
Mount the fixture
Attach the 50W Highbay Light Industrial to the bracket, tighten the locking knob, and adjust the tilt angle for desired beam direction (120° beam).
5
Test and verify
Power on via MCB/DP switch. Verify output brightness (CRI ≥ 80), check IP66 gaskets are sealed, and confirm 6kV surge protector LED is green.
Need professional installation in Nashik or nearby? +91-9607908423 | WhatsApp us

Frequently Asked Questions about 50W LED Highbay Light

The 50W Highbay Light Industrial is a 50W LED Highbay Light with IP66 ingress protection, 120° beam angle, CRI ≥ 80, 50,000 hr LED life, and 50W 90% efficiency. It operates on 90V – 300V AC at 50Hz with 6kV surge protection.
The 50W Highbay Light Industrial carries an IP66 rating. The first digit (6) means it is completely dust-tight. The second digit (6) means it is protected against powerful water jets from any direction. This suits outdoor Indian conditions including monsoons and industrial washdown areas.
LED highbay lights use far less power than halogen, metal-halide or sodium-vapour fittings at similar lighting levels. See the running-cost answers below for 50W-specific figures. Actual savings depend on your tariff, burning hours and the lighting level your site needs. With 50,000 hr LED life, you also avoid frequent lamp replacements.
Yes. With IP66 protection, -20°C to 50°C operating range, and 6kV surge protection for grid fluctuations, it is purpose-built for Indian outdoor conditions. Applications include: Outdoor Lighting, Industrial Lighting, Campus, Streets, Highways, Factories.
It supports 90V – 300V AC at 50Hz, covering virtually all Indian grid conditions including rural areas with unstable supply. The power factor of ≥ 0.95 ensures minimal reactive current draw.
Xera Tech provides 2 Years manufacturer warranty on the light and 2 Years on the driver. For warranty claims, contact connect@xeratech.in or call +91-9607908423. Returns are accepted within 7 days of delivery. HSN code: 9405 40 90.
For a complete installation set: Light , Aluminium Armoured Cable, Cable, DP MCB, DWC Pipe, Earthing Pipe & Wire, Feeder Panel , FRP Box, MSB. Mounting pipe inner diameter: Standard.
Yes. Xera Tech offers dealer pricing, bulk discounts, and government tender pricing for orders above the minimum quantity of 2 units. Custom wattages, special colour temperatures, and project-specific configurations are available on request. Contact connect@xeratech.in or WhatsApp +91-9607908430 for a custom quote.
The 50W Highbay Light Industrial is priced at ₹1,600 per unit excluding GST (MRP ₹1,760). With 18% GST the price is about ₹1,888.00 per unit. The minimum order quantity is 2 units and 1,000 units are listed in stock. Bulk, dealer and government-tender pricing is available on request.
Running dusk to dawn (about 12 hours a night), a 50W fixture uses roughly 219 units (kWh) a year. At ₹8 per unit that is about ₹1,752 a year, and at ₹10 per unit about ₹2,190. Your actual cost depends on your tariff and burning hours.
A 150W halogen fitting running 12 hours a night uses about 657 units a year (about ₹5,256 at ₹8 per unit). The 50W LED uses about 219 units (about ₹1,752), a saving of roughly ₹3,504 per fitting per year. Confirm that the LED gives the lighting level your site needs before replacing old fittings; Xera Tech can run a lux calculation at no cost.
The 50W Highbay Light Industrial measures 185mm × 185mm × 110mm (H × W × D) and weighs 1,100g. Mounting pipe inner diameter: Standard. Housing: Aluminium Die cast. Body colour: White.
Listed certifications: ISO, BIS, NSIC, NABL, ZED, PWD, ERDA, GeM, NMC. Copies of certificates and test reports can be requested for tender or project submissions by writing to connect@xeratech.in or calling +91-9607908423.
Available in: Cool White,Natural White,Warm White. State the colour temperature you need when ordering and ask for the exact Kelvin rating on the datasheet.
The LED is rated for 50,000 hr, which is roughly 11 years at 12 hours of use a night. This is the rated LED life, not a warranty period. The product warranty is 2 Years and the driver warranty is 2 Years.
Yes. Xera Tech ships pan-India from Nashik, Maharashtra. Orders are normally dispatched within 1–2 working days and typically arrive in 3–7 days. Returns are accepted within 7 days of delivery.
Available wattages and per-unit prices (excluding GST): 50W at ₹1,600, 100W at ₹3,000, 150W at ₹3,350, 200W at ₹3,800, 250W at ₹4,900. Minimum order quantity is 2 units. Custom wattages are available on request.
The right wattage depends on the mounting height, the area to be lit and the lighting level (lux) your project requires. Xera Tech's technical team provides lumen and lux calculations before purchase at no cost. Share your area size and mounting height on WhatsApp +91-9607908430 or at connect@xeratech.in.
It carries ISO, BIS, NSIC, NABL, ZED, PWD, ERDA, GeM, NMC and is supplied to Municipal Bodies, Government Tenders, Factories, Warehouses, Commercial Buildings, Housing Societies. Compare your tender's technical specification with the datasheet and request certificates and test reports before bidding.
Step 1 – Fix the bracket: Secure the highbay light bracket to the mounting surface (wall, pole, or structure) using M8 or M10 bolts. Ensure the surface can bear at least 1100g. Step 2 – Route the wiring: Route 3-core (L, N, E) cable rated for 90V – 300V AC through the conduit to the junction point. Minimum wire gauge: 1.5 mm². Step 3 – Connect terminals: Connect Live (L), Neutral (N) and Earth (E) to the corresponding terminals in the Isolated driver. The driver supports 90V – 300V AC at 50Hz. Step 4 – Mount the fixture: Attach the 50W Highbay Light Industrial to the bracket, tighten the locking knob, and adjust the tilt angle for desired beam direction (120° beam). Step 5 – Test and verify: Power on via MCB/DP switch. Verify output brightness (CRI ≥ 80), check IP66 gaskets are sealed, and confirm 6kV surge protector LED is green. Use a qualified electrician and follow local electrical rules.
HL-I-50 stands for Highbay Light, Industrial, 50 W. You can open this product directly at https://xeratech.in/products/HL-I-50 or on its full page at https://xeratech.in/products/50w-highbay-light-industrial.
Yes. On this page, 'Watch live promo' plays a 40-second animated overview in English, Hindi or Marathi, with close-ups and the key specifications, and 'See it glowing' lets you switch the fixture on and change the light colour and brightness.
