Download complete technical datasheet including wattage, dimensions, IP rating, material specifications, lumen output, installation details and warranty information.

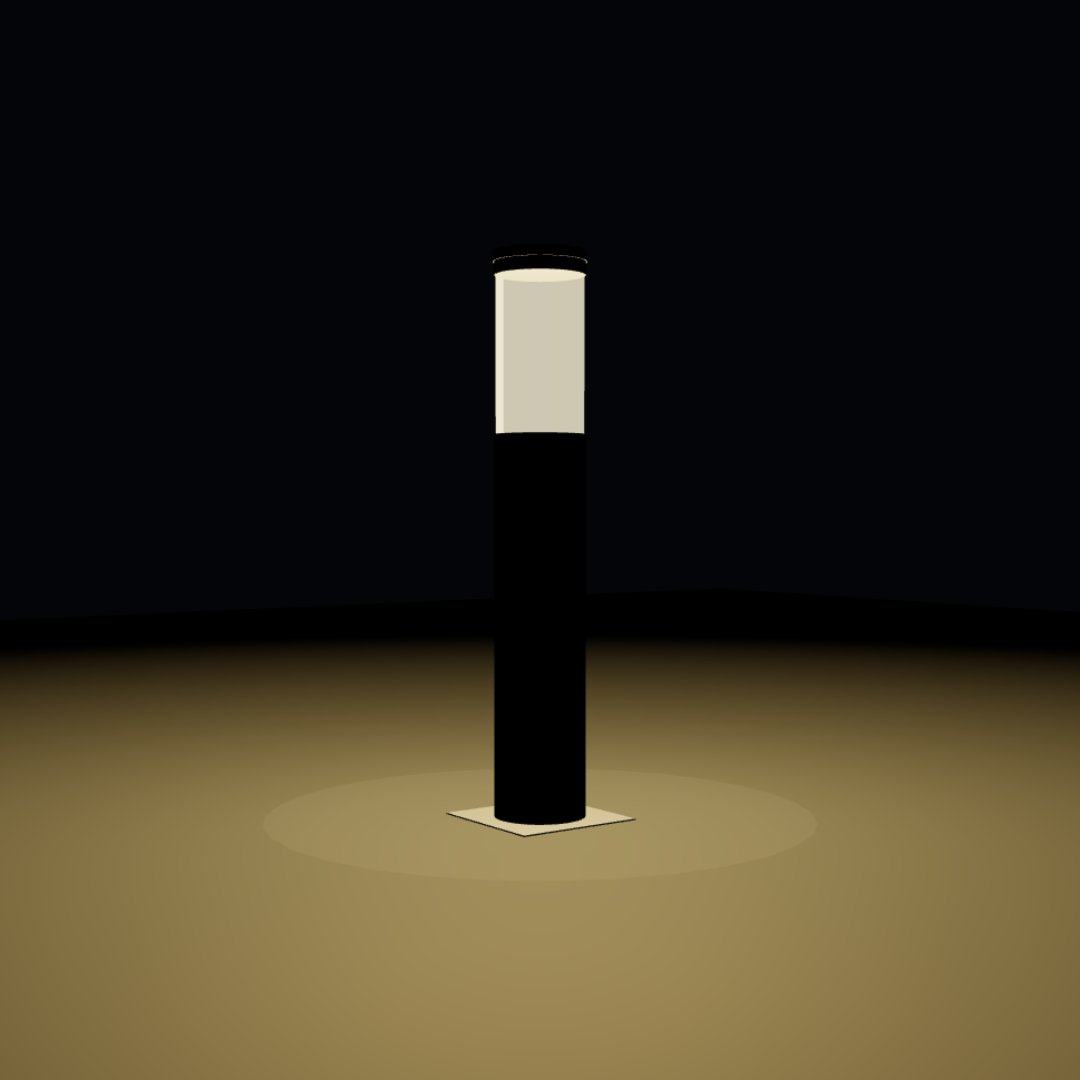

20W LED Bollard Light
BL-CYL-20 IP65 360° CRI ≥ 80
Short link:
xeratech.in/products/BL-CYL-20
Excl. GST | Min. 4 units | In stock: 200 units
Min. 4 units
Key Highlights
Why Choose the 20W Bollard Light
Electricity Saving Calculator
See how much you save by switching to the 20W LED Bollard Light from traditional halogen or sodium vapour lights.
Product Description
The 20W LED Bollard Light is a 20W LED Bollard Light manufactured by Xera Tech in Nashik, Maharashtra. Designed for demanding outdoor and industrial environments, this IP65 bollard light is built for long, dependable outdoor service — making it one of the most durable outdoor bollard lights available in India.
Powered by 90% efficient LEDs with a rated life of 50,000 hr, this 20W outdoor bollard light delivers a 360° beam angle and CRI of ≥ 80 — ensuring excellent colour rendering for streets, warehouses, facades, and industrial campuses. The Aluminium Extruded Body with PC Opal Diffuser housing provides structural rigidity and efficient heat sinking, critical for continuous-duty outdoor installations.
Operating on a wide input of 90V – 300V AC at 50Hz, with built-in 2kV surge protection and a power factor of ≥ 0.95, this IP65 bollard light is purpose-engineered for Indian grid conditions — including rural areas with frequent voltage fluctuations and load-shedding. Operating temperature range: -20°C to 50°C.
Certified ISO, BIS, NSIC, NABL, ZED, PWD, ERDA, GeM, NMC, the 20W LED Bollard Light is pre-qualified for government tenders, municipal infrastructure bids, and private industrial procurement across India. Applications include: Garden Pathways, Walkways, Driveways, Hotel Landscapes, Corporate Campuses, Parks, Residential Society Pathways, Smart City Pedestrian Zones, Swimming Pool Surrounds, Outdoor Lobbies, Promenades.
As a leading LED bollard light manufacturer in Nashik, Maharashtra, Xera Tech supplies this product pan-India with 2 Years manufacturer warranty and 7 days return policy (HSN: 9405 49 00). The Isolated driver also carries a 2 Years warranty, ensuring your total cost of ownership remains predictable over the fixture's lifetime.
Full Technical Specifications
| Brand | Xera Tech |
|---|---|
| SKU / Model | BL-CYL-20 |
| Wattage | 20W |
| LED Efficiency | 90% |
| LED Life | 50,000 hr |
| CRI | ≥ 80 |
| Beam Angle | 360° |
| IP Rating | IP65 |
| Housing | Aluminium Extruded Body with PC Opal Diffuser |
| Driver Type | Isolated |
| Driver Efficiency | 90% |
| Power Factor | ≥ 0.95 |
| Voltage Range | 90V – 300V AC |
| Frequency | 50Hz |
| Surge Protection | 2kV |
| Operating Temp. | -20°C to 50°C |
| Dimensions (H×W×D) | 1000mm × 120mm × 120mm |
| Package Dims. | 1100mm × 200mm × 200mm |
| Weight | 4,500g |
| Mounting Pipe ID | NAmm |
| Body Colour | Anthracite Dark Grey |
| Colour Variants | Cool White, Natural White, Warm White |
| Warranty | 2 Years |
| Driver Life | 2 Years |
| Application | Garden Pathways, Walkways, Driveways, Hotel Landscapes, Corporate Campuses, Parks, Residential Society Pathways, Smart City Pedestrian Zones, Swimming Pool Surrounds, Outdoor Lobbies, Promenades |
| Certifications | ISO, BIS, NSIC, NABL, ZED, PWD, ERDA, GeM, NMC |
| Customer Segment | Real Estate Developers, Housing Societies, Hotel & Hospitality Sector, Corporate Campuses, Municipal Bodies, Smart City Corporations, Landscape Architects, Commercial Building Owners |
| Min. Order Qty | 4 units |
| HSN Code | 9405 49 00 |
| Return Policy | 7 days |
Key Features
Certifications
Applications
How to Install the 20W LED Bollard Light
Complete installation guide for the 20W Bollard Light (Outdoor Bollard, Cylinder Bollard). Required supplies: 20W LED Bollard (1 No), Square Base Plate, Anchor Bolts (4 Nos), Mounting Hardware, Junction Connector.
Frequently Asked Questions about 20W LED Bollard Light
Customer Reviews
Excellent build quality, very bright. Installed 20 units on our campus road — functioning perfectly after 6 months. IP66 confirmed — no water ingress during heavy rains.
IP66 held up well during Pune monsoon. Good value for the price. The Down Choke design clearly runs cooler than our older back choke lights.
Recent Bollard Light Installations
Xera Tech has deployed 20W LED Bollard Light products across Maharashtra and pan-India — Nashik, Pune, Mumbai, Thane, Aurangabad, Kolhapur & more.
Aandhra Pradesh Nandiyal
Shahapur
Mahad
Nandurbar
Chanakapur Dam
Nanavale
Buy 20W LED Bollard Light from Nashik, India
Looking to buy 20W LED Bollard Light online in India? The 20W LED Bollard Light is available at ₹3,200 (MRP ₹3,800) with pan-India delivery from our warehouse in Nashik, Maharashtra. Xera Tech is a MIDC-based LED lighting manufacturer supplying outdoor flood lights, street lights, high bay lights, and solar lights to government bodies, contractors, municipalities, factories and housing societies across India.
Our 20W Bollard Light range is available in wattages from 20W to 30W to suit every project scale. All models carry ISO, BIS, NSIC, NABL, ZED, PWD, ERDA, GeM, NMC certification and are pre-qualified for government tenders.
For bulk pricing, project quotations, or dealer/distributor inquiries for Bollard Light in Nashik, Maharashtra, or pan-India — call +91-9607908423 or email connect@xeratech.in. Our technical team provides pre-purchase consultation, lumen calculations, and project-specific recommendations at no cost.
