Download complete technical datasheet including wattage, dimensions, IP rating, material specifications, lumen output, installation details and warranty information.
150W Highbay Light Regular
HL-R-150 IP66 120° CRI ≥ 80
Short link:
xeratech.in/products/HL-R-150
Excl. GST | Min. 2 units | In stock: 1,000 units
Min. 2 units
Key Highlights
Why Choose the 150W Highbay Light
Electricity Saving Calculator
See how much you save by switching to the 150W LED Highbay Light from traditional metal-halide lights.
Product Description

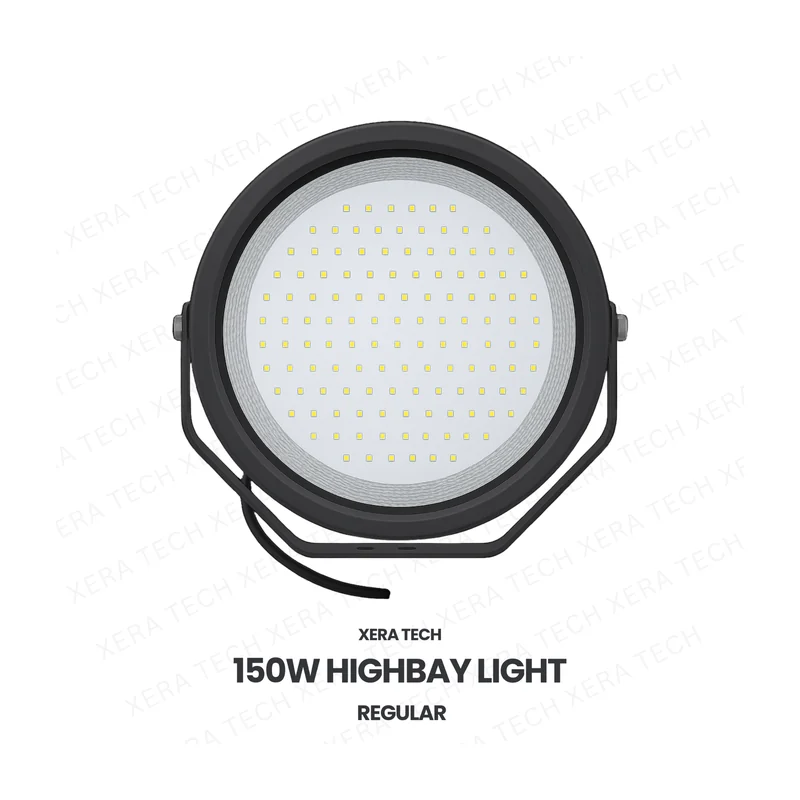

The 150W Highbay Light Regular is a 150W LED Highbay Light manufactured by Xera Tech in Nashik, Maharashtra. Designed for demanding outdoor and industrial environments, this IP66 highbay light is built for long, dependable outdoor service — making it one of the most durable outdoor highbay lights available in India.

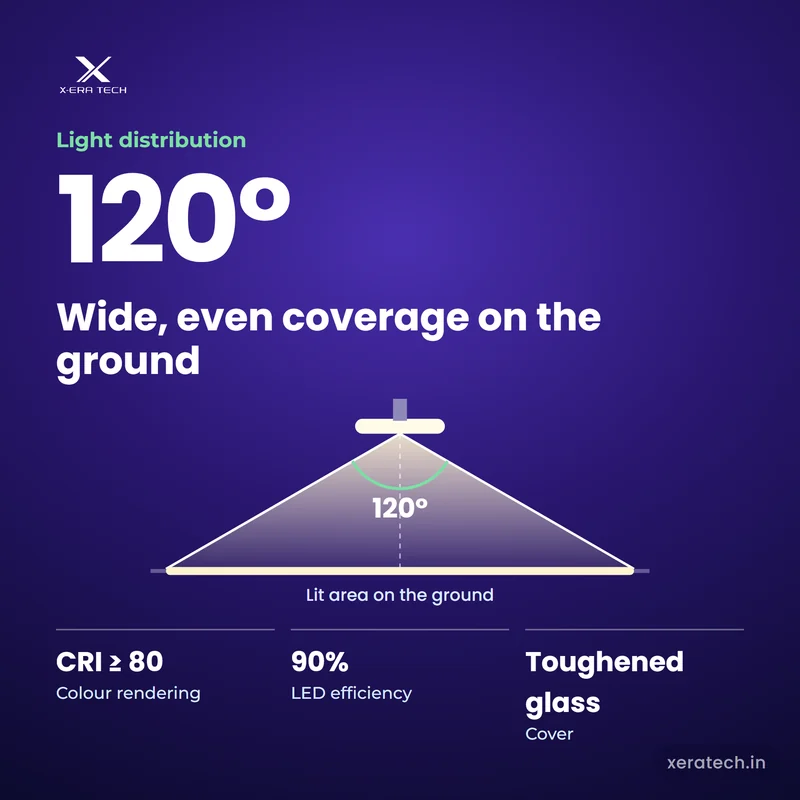

Powered by 90% efficient LEDs with a rated life of 50,000 hr, this 150W outdoor highbay light delivers a 120° beam angle and CRI of ≥ 80 — ensuring excellent colour rendering for streets, warehouses, facades, and industrial campuses. The Aluminium Die cast housing provides structural rigidity and efficient heat sinking, critical for continuous-duty outdoor installations.
Operating on a wide input of 90V – 300V AC at 50Hz, with built-in 6kV surge protection and a power factor of ≥ 0.95, this IP66 highbay light is purpose-engineered for Indian grid conditions — including rural areas with frequent voltage fluctuations and load-shedding. Operating temperature range: -20°C to 50°C.
Certified ISO, BIS, NSIC, NABL, ZED, PWD, ERDA, GeM, NMC, the 150W Highbay Light Regular is pre-qualified for government tenders, municipal infrastructure bids, and private industrial procurement across India. Applications include: Outdoor Lighting, Industrial Lighting, Campus, Streets, Highways, Factories.
As a leading LED highbay light manufacturer in Nashik, Maharashtra, Xera Tech supplies this product pan-India with 2 Years manufacturer warranty and 7 days return policy (HSN: 9405 40 90). The Isolated driver also carries a 2 Years warranty, ensuring your total cost of ownership remains predictable over the fixture's lifetime.
Full Technical Specifications
| Brand | Xera Tech |
|---|---|
| SKU / Model | HL-R-150 |
| Wattage | 150W |
| LED Efficiency | 90% |
| LED Life | 50,000 hr |
| CRI | ≥ 80 |
| Beam Angle | 120° |
| IP Rating | IP66 |

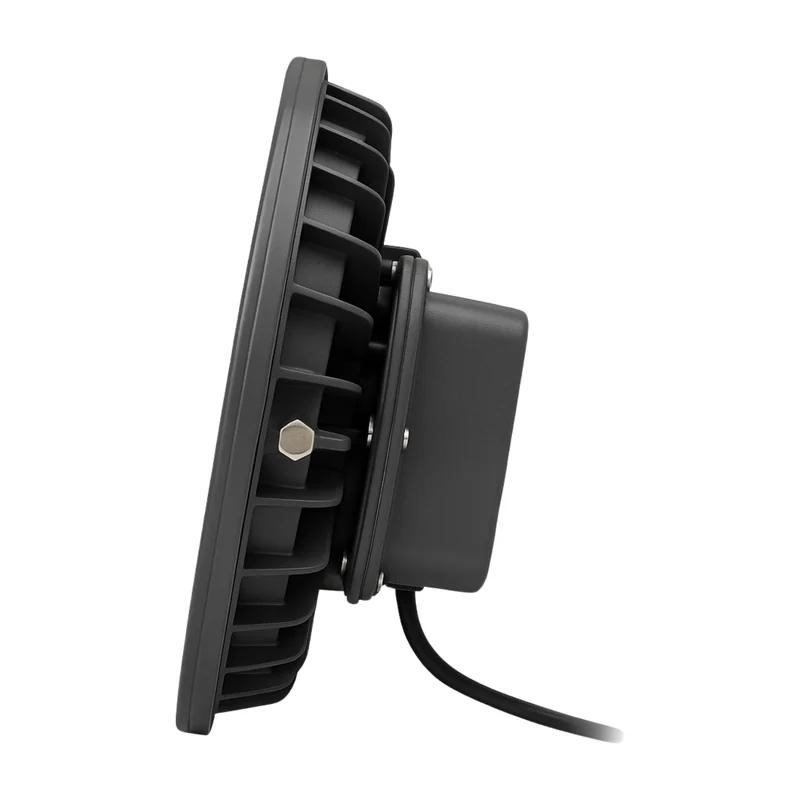

| Housing | Aluminium Die cast |
| Driver Type | Isolated |
| Driver Efficiency | 90% |
| Power Factor | ≥ 0.95 |
| Voltage Range | 90V – 300V AC |
| Frequency | 50Hz |
| Surge Protection | 6kV |
| Operating Temp. | -20°C to 50°C |
| Dimensions (H×W×D) | 320mm × 320mm × 130mm |
| Package Dims. | 340mm × 340mm × 150mm |
| Weight | 3,800g |
| Mounting Pipe ID | Standard |
| Body Colour | White |
| Colour Variants | Cool White,Natural White,Warm White |
| Warranty | 2 Years |
| Driver Life | 2 Years |
| Application | Outdoor Lighting, Industrial Lighting, Campus, Streets, Highways, Factories |
| Certifications | ISO, BIS, NSIC, NABL, ZED, PWD, ERDA, GeM, NMC |
| Customer Segment | Municipal Bodies, Government Tenders, Factories, Warehouses, Commercial Buildings, Housing Societies |
| Min. Order Qty | 2 units |
| HSN Code | 9405 40 90 |
| Return Policy | 7 days |
Key Features
Certifications
Applications

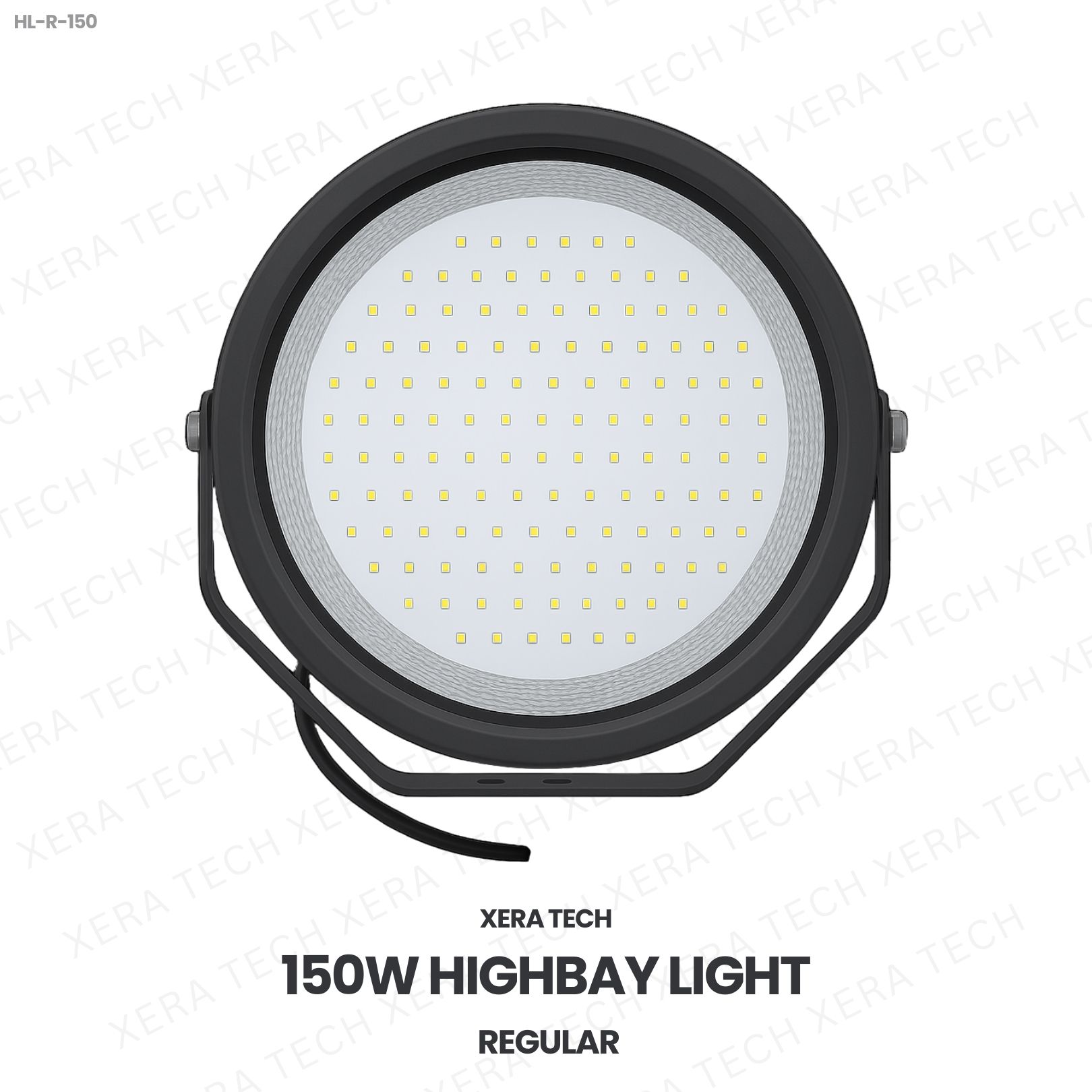

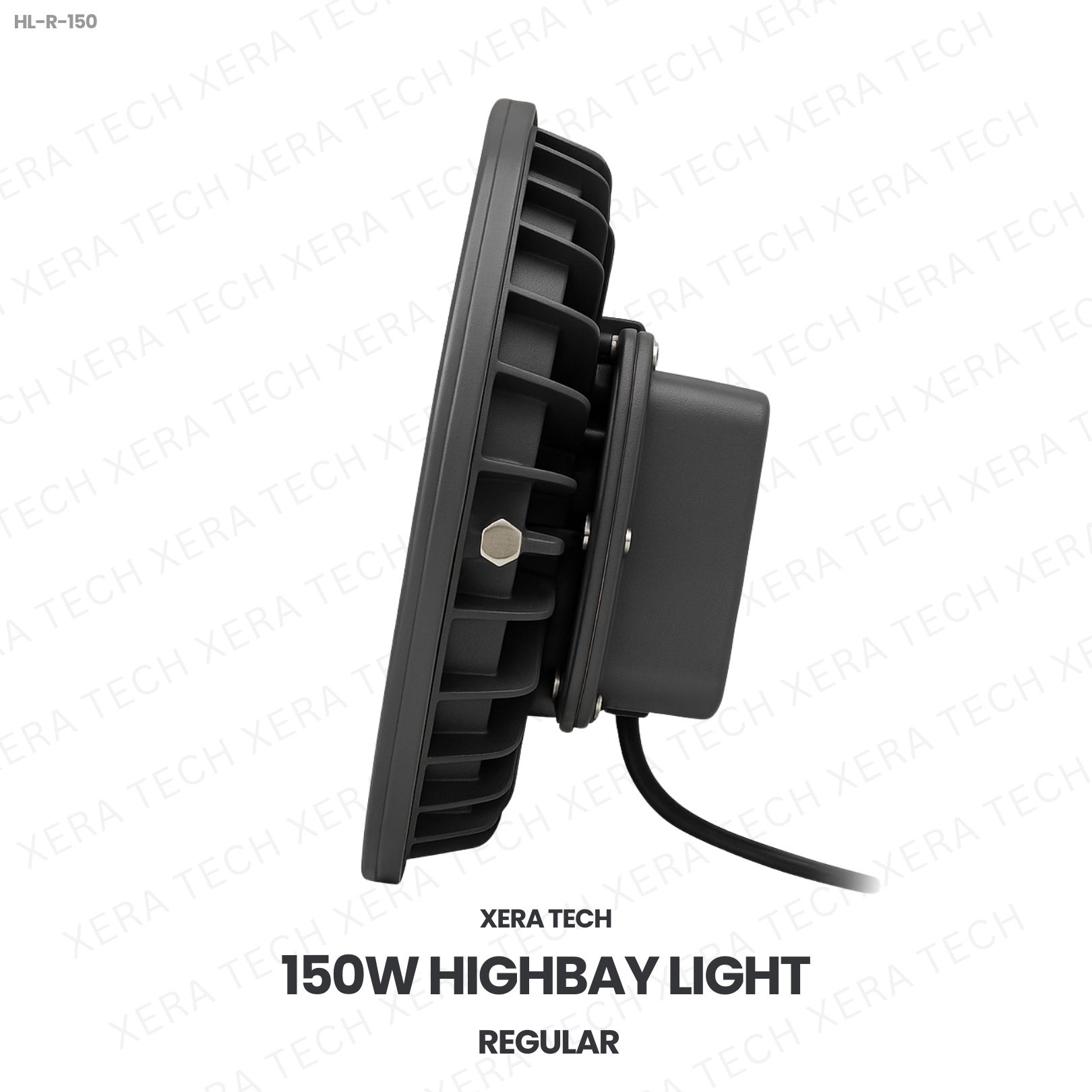

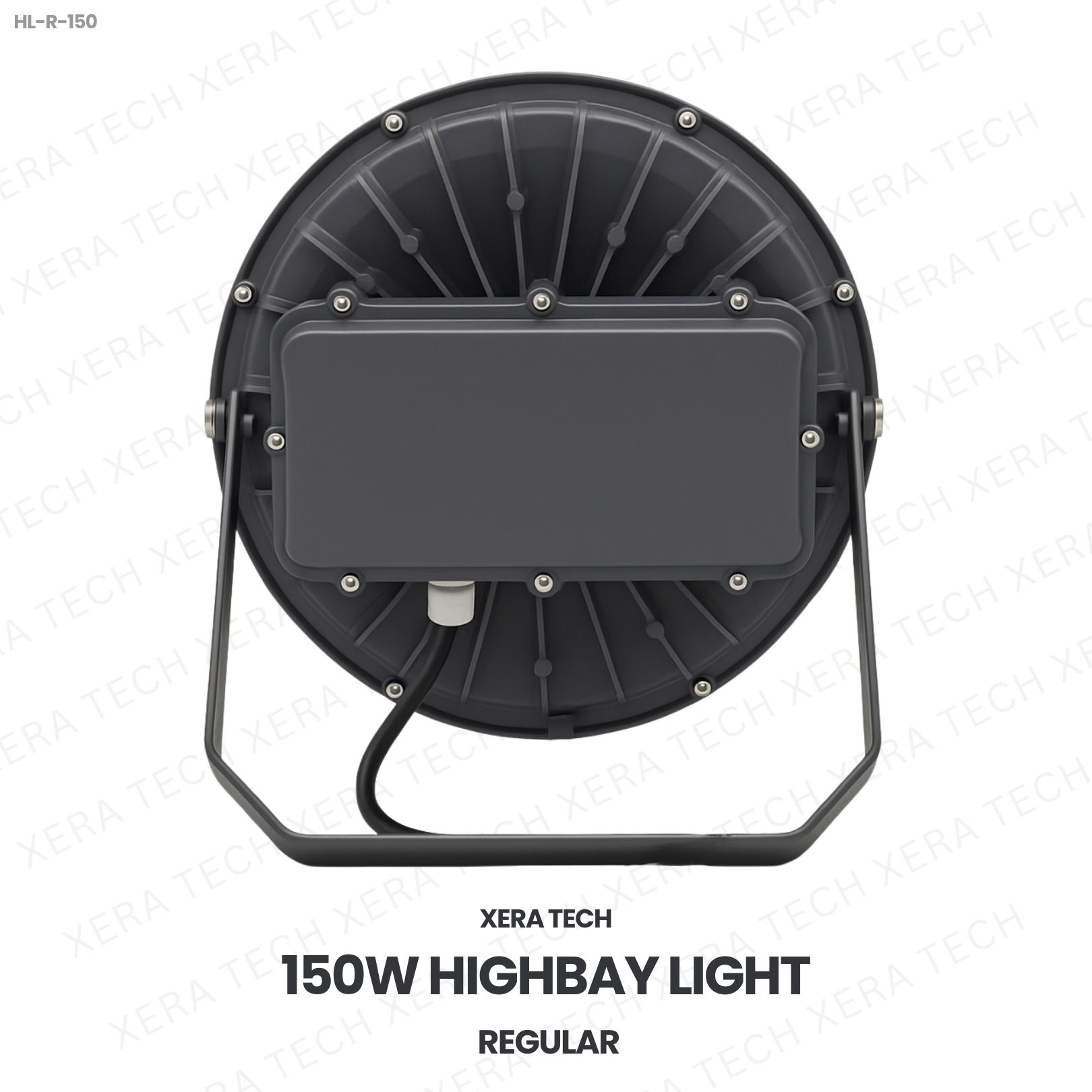

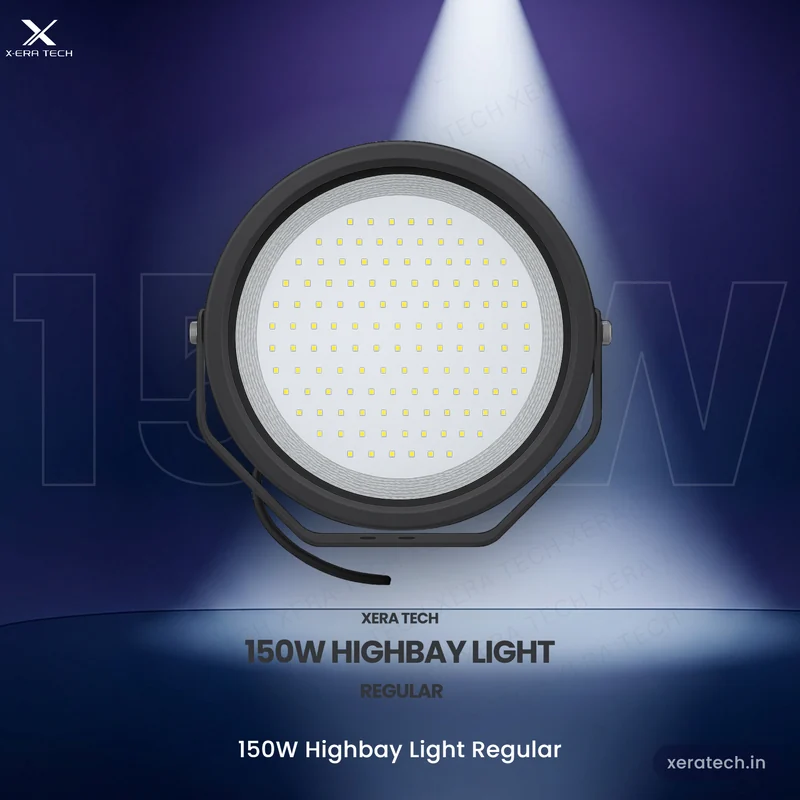

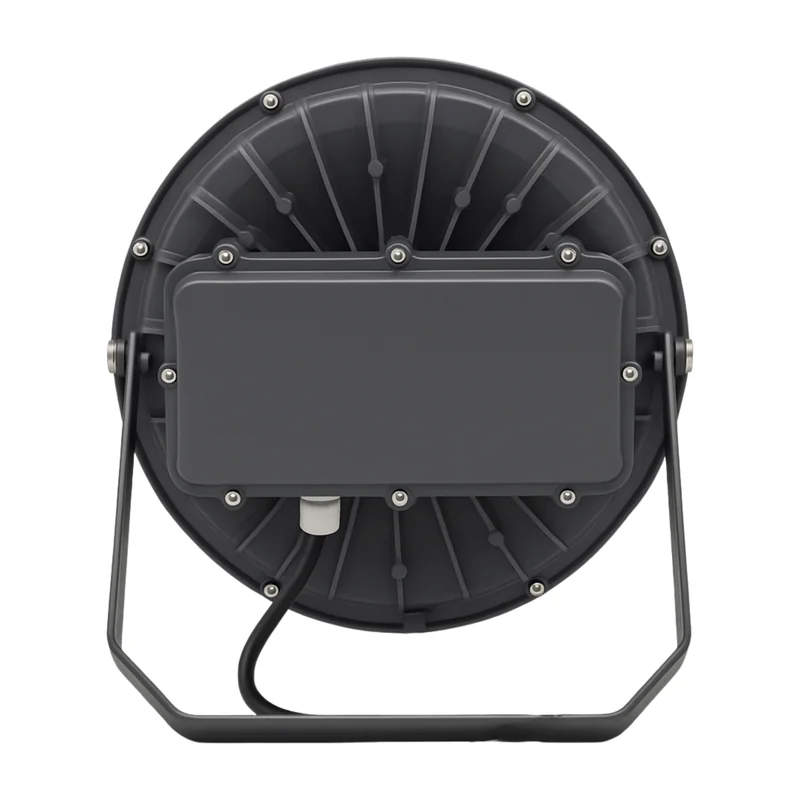

150W Highbay Light Regular: Photos, Infographics & Use Cases
How to Install the 150W Highbay Light Regular
Complete installation guide for the 150W Highbay Light (Regular, Regular). Required supplies: Light , Aluminium Armoured Cable, Cable, DP MCB, DWC Pipe, Earthing Pipe & Wire, Feeder Panel , FRP Box, MSB.
Frequently Asked Questions about 150W LED Highbay Light
Customer Reviews
Excellent build quality, very bright. Installed 20 units on our campus road — functioning perfectly after 6 months. IP66 confirmed — no water ingress during heavy rains.
IP66 held up well during Pune monsoon. Good value for the price. The Down Choke design clearly runs cooler than our older back choke lights.
Similar Highbay Light Products
Recent Highbay Light Installations
Xera Tech has deployed 150W LED Highbay Light products across Maharashtra and pan-India — Nashik, Pune, Mumbai, Thane, Aurangabad, Kolhapur & more.
Aandhra Pradesh Nandiyal
Pimpalgaon
Raigad
Nandurbar
Dehu Road
Nashik
Product Video – 150W Highbay Light Regular
Buy 150W LED Highbay Light from Nashik, India
Looking to buy 150W LED Highbay Light online in India? The 150W Highbay Light Regular is available at ₹2,800 (MRP ₹3,080) with pan-India delivery from our warehouse in Nashik, Maharashtra. Xera Tech is a MIDC-based LED lighting manufacturer supplying outdoor flood lights, street lights, high bay lights, and solar lights to government bodies, contractors, municipalities, factories and housing societies across India.
Our 150W Highbay Light range is available in wattages from 50W to 250W to suit every project scale. All models carry ISO, BIS, NSIC, NABL, ZED, PWD, ERDA, GeM, NMC certification and are pre-qualified for government tenders.
For bulk pricing, project quotations, or dealer/distributor inquiries for Highbay Light in Nashik, Maharashtra, or pan-India — call +91-9607908423 or email connect@xeratech.in. Our technical team provides pre-purchase consultation, lumen calculations, and project-specific recommendations at no cost.
