LED Canopy Lights for Petrol Pumps in India 2026: Complete Buyer's Guide for IOCL, BPCL & HPCL Stations
India's fuel retail sector doesn't sleep. IOCL, BPCL, HPCL, Nayara, and Adani collectively operate over 80,000 fuel stations — and every one of them is either building new with LED canopy lights as standard, or retrofitting old metal halide fixtures that are long overdue for replacement. In 2026, with India's LED lighting market valued at USD 12.54 billion and growing at 8.44% CAGR, the canopy light segment is one of the highest-volume commercial LED procurement categories in the country. This guide is for petrol pump owners, EPC contractors, PSU engineers, and dealers who need to get the specification right the first time.
Why 2026 Is the Year of LED Canopy at Indian Fuel Stations
Three forces have converged to make LED canopy lighting a priority procurement for Indian fuel retailers in 2026.
PSU mandate: IOCL, BPCL, and HPCL have made LED lighting a non-negotiable specification for all new station builds and canopy renovation projects across their dealer networks. Any dealership undertaking a canopy refurbishment — new roofing, rebranding, ACP fascia work — must upgrade to LED simultaneously. With thousands of stations cycling through refurbishment each year, this creates a structural demand floor that doesn't exist in most other commercial lighting segments.
Metal halide's end of life: The bulk of Indian fuel station canopies built between 2000 and 2015 used 250W or 400W metal halide fixtures. These fixtures are now routinely failing — ballasts burning out, lamps requiring quarterly replacement, control gear corroding in the outdoor environment. The replacement cost in labour and downtime at an active 24×7 fuel station is significant. LED canopy lights eliminate this maintenance cycle entirely.
Energy bill pressure: A typical 12-fixture metal halide canopy consumes 4,800W of active load (12 × 400W) plus approximately 720W of ballast loss — 5,520W total. Running 14 hours/day at ₹9/unit, that's an annual electricity bill of approximately ₹2.56 lakhs for the canopy lighting alone. LED cuts this to under ₹65,000/year. For a dealer group managing 10 stations, the annual saving exceeds ₹19 lakhs.
What Is a Canopy Light?
A canopy light is a flat, low-profile LED luminaire designed to be mounted on the underside (soffit) of an overhead structure — a petrol pump canopy, a bus station shelter, a parking garage ceiling, or a building overhang — facing directly downward to illuminate the area beneath it.
The defining characteristic of a canopy light versus a standard LED flood light is its form factor: wide and flat, designed to sit flush or nearly flush against the canopy ceiling. This keeps the fixture below the canopy soffit rather than projecting downward, preventing damage from tall vehicles and maintaining the clean visual line of the canopy fascia.
Canopy lights at fuel stations serve three simultaneous purposes: functional safety illumination for customers fuelling their vehicles, security lighting for cameras covering cash transactions at pump terminals, and brand visibility — a well-lit station commands attention from the road and signals operational quality to passing traffic.
Lux and Photometric Requirements for Fuel Station Canopies
The Illuminating Engineering Society (IES) and Bureau of Indian Standards provide photometric benchmarks for fuel station canopy lighting. In practice, Indian petroleum companies apply their own internal standards that are broadly aligned with international norms:
| Zone | Recommended Lux | Reason |
|---|---|---|
| Pump island — general | 200–300 lux | Safe fuelling, hose and nozzle visibility |
| Payment terminal area | 300–400 lux | CCTV performance, fraud prevention |
| Canopy perimeter / entry-exit | 100–150 lux | Vehicle transition safety |
| Convenience store entrance | 150–200 lux | Indoor-outdoor transition comfort |
| Service bay / tyre inflation | 200–300 lux | Safe equipment handling |
Uniform illuminance — preventing dark patches between fixtures — is as important as average lux. A uniformity ratio (minimum:average lux) of at least 0.4 is the standard target. This is why fixture spacing is as critical as wattage selection: too few fixtures create bright spots under each fixture with dark zones between them.
For formal photometric layouts (DIALux or RELUX lux calculations with isolux diagrams) for PSU tender submissions, Xeratech provides technical documentation on request. Request a canopy photometric layout →
Why IP66 — Not IP65 — for Petrol Pump Canopies
Most outdoor LED fixtures are rated IP65 — dust-tight and protected against low-pressure water jets. For most outdoor applications, this is adequate. Petrol pump canopies are not most applications.
Fuel station canopies are pressure-washed regularly — forecourt cleaning teams use high-pressure hoses directly on the canopy soffit and fixtures. Fuel mist from dispensing nozzles creates a fine hydrocarbon film on fixture surfaces. India's monsoon delivers sustained high-volume water exposure. And canopy fixtures face direct vehicle exhaust in the enclosed forecourt environment, creating soot and grime buildup that requires aggressive cleaning.
IP66 provides protection against powerful water jets from any direction — the step up from IP65's low-pressure test. It also means tighter sealing on all cable entries, housing joints, and lens-to-body interfaces. For a fixture that will be pressure-washed monthly and exposed to fuel atmospheres for 12–15 years, IP66 is the correct specification.
Both Xeratech canopy light models — CL-R-80 and CL-R-100 — are rated IP66 as standard. Read more on IP ratings for outdoor LED lights →
Wattage Selection Guide for Petrol Pump Canopies
| Canopy Type | Canopy Height | Fixture Spacing | Recommended Wattage | Xeratech SKU | Replaces |
|---|---|---|---|---|---|
| Single-row island (2 dispensers) | 5–6 m | 2.0–2.5 m apart | 80W | CL-R-80 | 150W MH |
| Single-row island (4 dispensers) | 5–6 m | 2.0–2.5 m apart | 80W | CL-R-80 | 250W MH |
| Double-row island (4–6 dispensers) | 6–7 m | 2.5–3.0 m apart | 100W | CL-R-100 | 250–400W MH |
| Wide span canopy (highway station) | 7–9 m | 3.0 m apart | 100W | CL-R-100 | 400W MH |
| CNG / EV charging canopy | 5–7 m | 2.5 m apart | 80–100W | CL-R-80 or CL-R-100 | New installation |
For retrofit projects, the rule of thumb is: one 80W LED replaces one 250W metal halide, and one 100W LED replaces one 400W metal halide — delivering equivalent or higher lumen output at 60–75% lower wattage. Read the complete LED vs traditional comparison →
Surface Mount vs Recessed Installation
Canopy lights are installed in one of two configurations depending on the canopy structure:
Surface mount fixtures are bolted directly to the canopy soffit surface — visible on the underside but with a flat, low-profile body that sits close to the ceiling. This is the standard approach for retrofit on existing canopies where cutting new holes in the soffit is not practical or permitted. Installation is fast (15–20 minutes per fixture by one electrician), uses existing conduit runs, and does not disturb waterproof canopy roofing.
Recessed fixtures sit flush with the canopy soffit — visible only as a flat lens panel in the ceiling. Standard for new station construction where the electrical rough-in is planned during canopy fabrication. Recessed installation gives the canopy a premium, clean look preferred by major petroleum brands for their flagship stations. Requires cutouts in the canopy soffit and coordination with canopy structural drawings.
Xeratech's CL-R-80 and CL-R-100 are surface-mount fixtures — suitable for both retrofit and new construction. For projects requiring recessed specification, contact the Xeratech team for custom options →
Colour Temperature — Why 4000K–5000K Is the Industry Standard
Colour temperature for fuel station canopies has a right answer in 2026: 4000K to 5000K neutral to cool white. Here's why:
3000K warm white looks good in restaurants and hotels. At a petrol pump, it makes the forecourt look dim and tired — exactly the visual signal you don't want when competing with a brighter-looking station 200 metres down the road. 6500K cool white delivers more perceived brightness but produces harsh glare and causes visual fatigue for the staff managing 12-hour shifts.
4000K–5000K hits the balance: clean, bright-feeling illumination that matches the white and red branding of IOCL, the red and blue of BPCL, and the green of HPCL without casting a colour bias on pump signage. Colour rendering index (CRI) of 70+ ensures pump displays, price boards, and safety signage are read accurately at night.
Xeratech canopy lights deliver 5700K as standard — firmly in the bright cool-white range that petroleum retailers universally prefer. Ask about 4000K variants for specific projects →
Energy Savings & ROI — The Numbers for Indian Petrol Pumps in 2026
The ROI case for LED canopy conversion is the fastest payback of any commercial lighting upgrade available in India in 2026. Here's a worked example for a typical 4-dispenser, 12-fixture fuel station canopy:
| Parameter | Metal Halide (existing) | Xeratech LED (CL-R-100) |
|---|---|---|
| Wattage per fixture | 400W + 60W ballast = 460W | 100W |
| Total active load (12 fixtures) | 5,520W | 1,200W |
| Daily consumption | 77.3 units | 16.8 units |
| Annual electricity cost | ₹2,53,449 | ₹55,116 |
| Annual electricity saving | ₹1,98,333 | |
| Annual lamp replacement cost (MH) | ₹18,000+ (4 lamps/yr × 3 replacements) | ~₹0 |
| Total annual saving | ≈ ₹2,16,000+ | |
| Xeratech LED fixture cost (12 × CL-R-100) | ₹30,000 (12 × ₹2,500) | |
| Payback period | Under 2 months | |
A payback period of under two months is exceptional even by LED standards — driven by Xeratech's competitive pricing (₹2,500 per 100W fixture) combined with the high wattage of the metal halide fixtures being replaced and the long operating hours of a 24×7 fuel station. Over a 5-year period, the net saving on a single 12-fixture canopy exceeds ₹10.5 lakhs.
IOCL, BPCL, HPCL — Canopy Lighting Compliance in 2026
India's three major PSU fuel retailers each specify LED lighting requirements for dealer network upgrades. The common requirements across IOCL, BPCL, and HPCL include:
- BIS certification (mandatory — IS:10322 for luminaires)
- IP66 minimum rating for all canopy-mounted fixtures
- Minimum 200 lux average at pump island level
- CRI ≥ 70
- Power factor ≥ 0.90
- THD ≤ 20%
- Minimum 2-year manufacturer warranty
- Wide voltage range (85V–265V AC) for India's grid conditions
Xeratech's CL-R-80 and CL-R-100 meet all of the above — BIS certified, IP66, 90V–300V AC wide voltage input, power factor compliant, 2-year warranty. For dealer upgrades requiring PSU documentation packages (test reports, BIS certificates, manufacturer declaration), Xeratech provides a complete compliance dossier. Request PSU compliance documentation →
Xeratech LED Canopy Light Range
Xeratech manufactures its canopy light range at Satpur MIDC, Nashik. BIS certified, IP66, 90V–300V AC wide input, 50,000-hour rated life, 2-year warranty.
80W Canopy Light Regular
SKU: CL-R-80 · IP66 · 90V–300V AC · 50,000 hrs · 2yr Warranty
High-efficiency 80W LED canopy light for single-row pump islands and 6-metre canopies. Replaces 150–250W metal halide with 60%+ energy saving. IP66 rated. BIS certified. Surface mount.
₹2,100 ₹2,310
100W Canopy Light Regular
SKU: CL-R-100 · IP66 · 90V–300V AC · 50,000 hrs · 2yr Warranty
High-output 100W LED canopy light for double-row islands, wide-span highway station canopies, and 9-metre height applications. Replaces 400W metal halide — 75% energy saving. IP66. BIS certified.
₹2,500 ₹2,750
View all Xeratech canopy lights →

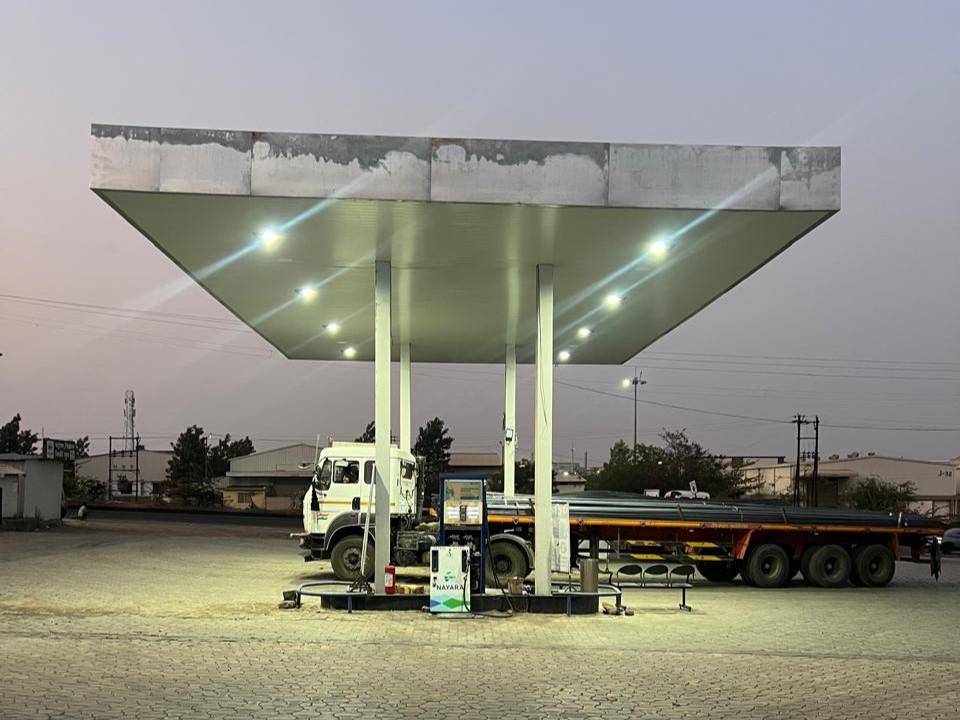

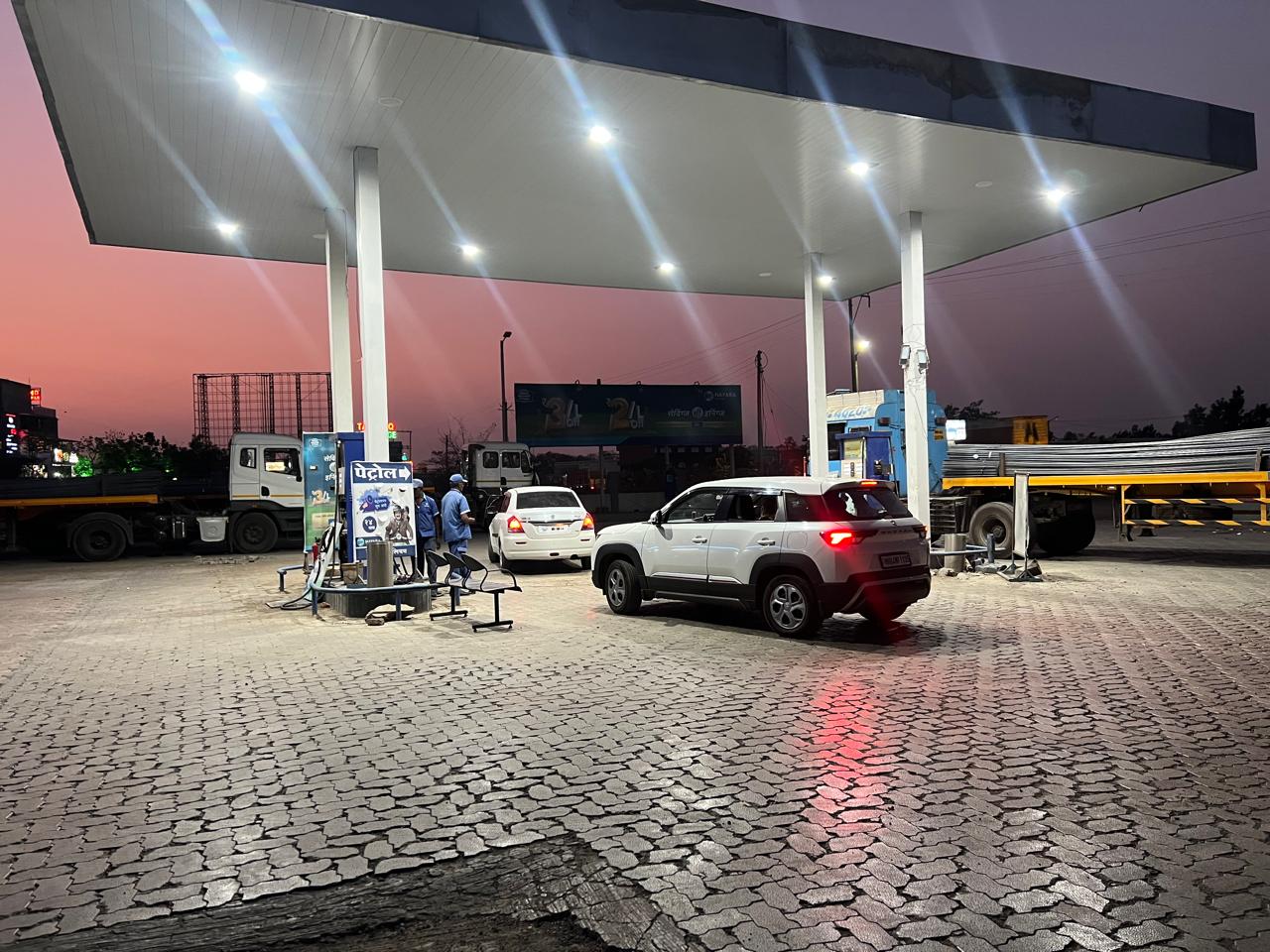

Real Installation: Petrol Pump, Sinnar, Maharashtra
Canopy Light Installation — Petrol Pump, Sinnar, Maharashtra
High-efficiency Xeratech LED canopy lights installed at a petrol pump in Sinnar to enhance night-time visibility, safety, and operational efficiency. The installation delivers uniform illuminance across the entire pump island — eliminating the dark patches and flickering that plagued the outgoing metal halide fixtures — while reducing the canopy electricity load by over 60%.
Location: Sinnar, Nashik District, Maharashtra | Application: Petrol pump canopy | Product: Xeratech LED Canopy Light Regular
Frequently Asked Questions
What wattage LED canopy light do I need for a petrol pump?
For a single-row pump island under a 6-metre canopy, 80W LED canopy lights (Xeratech CL-R-80, ₹2,100) spaced at 2–2.5 metres deliver 200–300 lux at pump level. For double-row islands or 9-metre canopies, 100W (CL-R-100, ₹2,500) is recommended. Both replace 250W–400W metal halide fixtures with 60–75% energy saving.
Why is IP66 required for petrol pump canopy lights?
Petrol pump canopy fixtures are pressure-washed regularly, exposed to fuel mist, and subject to sustained monsoon rain. IP66 provides protection against powerful water jets from any direction — more rigorous than the IP65 standard for general outdoor use. Both Xeratech canopy light models (CL-R-80 and CL-R-100) are rated IP66 as standard.
Are Xeratech canopy lights compatible with IOCL, BPCL, and HPCL specifications?
Yes. Xeratech canopy lights are BIS certified (IS:10322), IP66, CRI ≥ 70, power factor ≥ 0.90, wide voltage 90V–300V AC, with 2-year warranty — meeting all common IOCL, BPCL, and HPCL LED luminaire specifications for dealer network upgrades. PSU compliance documentation is available on request at https://xeratech.in/contact.
How much electricity do LED canopy lights save at a petrol pump?
Replacing 12 × 400W metal halide fixtures (5,520W total with ballast) with 12 × 100W Xeratech LED canopy lights (1,200W total) saves approximately ₹1,98,333/year in electricity at ₹9/unit, 14 hrs/day. Adding lamp replacement savings, total annual saving exceeds ₹2,16,000. At ₹2,500/fixture, payback is under 2 months.
What is the best colour temperature for petrol pump canopy lights?
4000K–5700K neutral to cool white is the industry standard for fuel station canopies. It delivers bright, clean illumination that makes the forecourt look active and well-maintained, supports CCTV performance, and complements the branding colours of IOCL, BPCL, and HPCL. 3000K warm white appears dim at petrol pumps; 6500K creates uncomfortable glare for attendants.
Can I retrofit LED canopy lights into an existing metal halide canopy?
Yes. Xeratech's surface-mount CL-R-80 and CL-R-100 are designed for retrofit — they wire into existing junction boxes using existing conduit runs. No new cutouts in the canopy soffit, no disruption to canopy roofing waterproofing. One electrician can complete a 12-fixture retrofit in approximately 4–5 hours.
What is the lifespan of a Xeratech LED canopy light?
Xeratech LED canopy lights are rated for 50,000 hours — approximately 9–10 years at 14 hours/day operation. This compares to 6,000–10,000 hours for metal halide, meaning LED canopy fixtures require no lamp replacement for the entire period versus 4–6 replacements for metal halide over the same timeframe.
Are canopy lights only for petrol pumps?
No. Canopy lights are used wherever overhead structures need downward illumination: parking garages, bus station shelters, toll plaza overhangs, building overhangs and porticos, drive-through restaurants, car wash bays, logistics dock overhangs, and commercial building entrances. Xeratech's CL-R-80 and CL-R-100 are suitable for all these applications.
Ready to upgrade your fuel station to LED?
Xeratech canopy lights — ₹2,100 for 80W, ₹2,500 for 100W. IP66. BIS certified. 2-year warranty. Made in Nashik. Payback in under 2 months. PSU compliance documentation available for IOCL, BPCL, and HPCL dealer projects.
