Understanding Corrosion Environments
Corrosivity categories (ISO 9223): C1 (very low): dry indoor - irrelevant for outdoor poles. C2 (low): inland rural areas with low humidity, mild climate. Standard powder-coated MS poles adequate. C3 (medium): urban and industrial atmospheres, coastal areas beyond 1 km from sea. Hot-dip galvanised MS minimum. C4 (high): industrial areas with chemical emissions, coastal within 1 km of sea. Hot-dip galvanised + epoxy primer + PU topcoat. C5 (very high): directly on seafront promenades, chemical plant environs, mangrove areas. Stainless steel 316L or high-build coating system. CX (extreme): offshore, chemical plants with acid fumes. Xera Tech maps each project to the correct corrosivity category before specifying pole treatment.
Protection Methods Explained

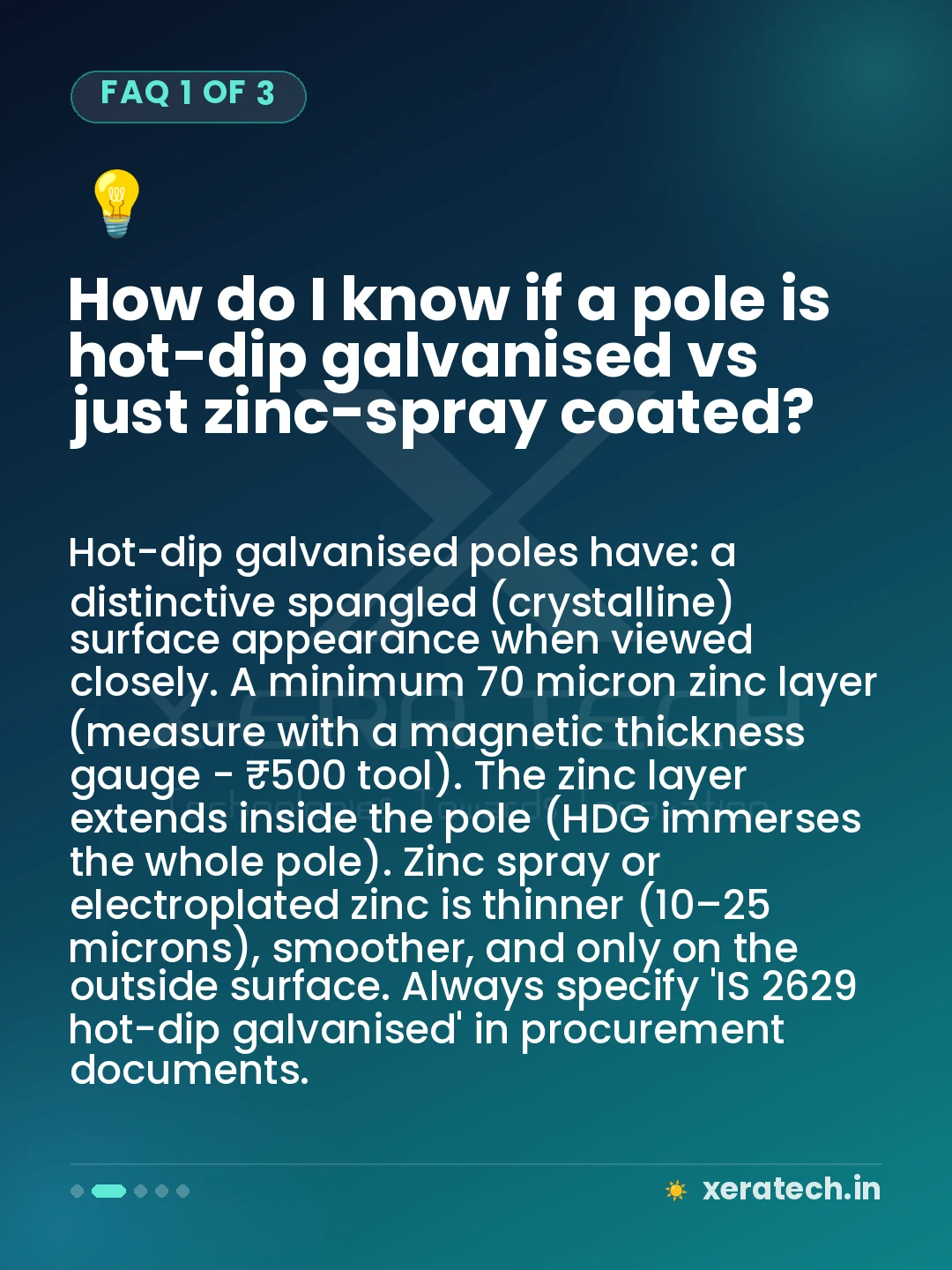

Powder coating alone: suitable for C2 only. Economical, wide colour range, 60–100 micron thickness. Fails in 5–8 years in C3+ environments. Hot-dip galvanising (HDG): 70–85 microns of zinc coating applied by immersion in molten zinc. Provides sacrificial cathodic protection - zinc corrodes instead of the steel. Minimum 25 years in C3, 15 years in C4 environments. This is the standard for all outdoor poles in Maharashtra. HDG + duplex coating (epoxy primer + PU topcoat over galvanised steel): doubles the service life of hot-dip galvanised alone. Used for C4/C5 environments. Total coating thickness: 150–200 microns. Stainless steel 316L: naturally corrosion-resistant - no coating needed. For C5/CX and premium marine applications. Significantly more expensive (3–5× MS pole cost) but maintenance-free for 30+ years.
Coastal Maharashtra - Specific Guidance

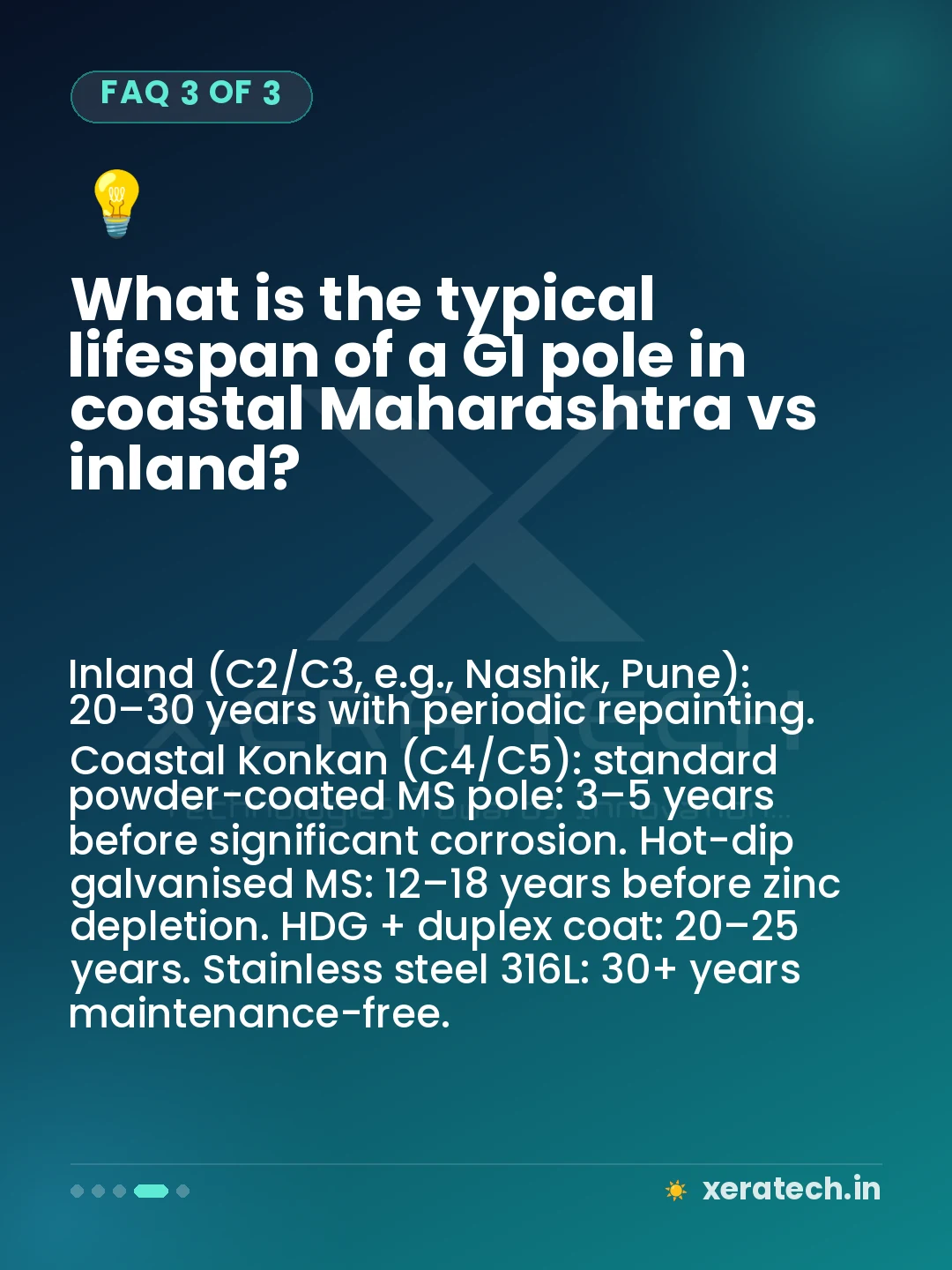

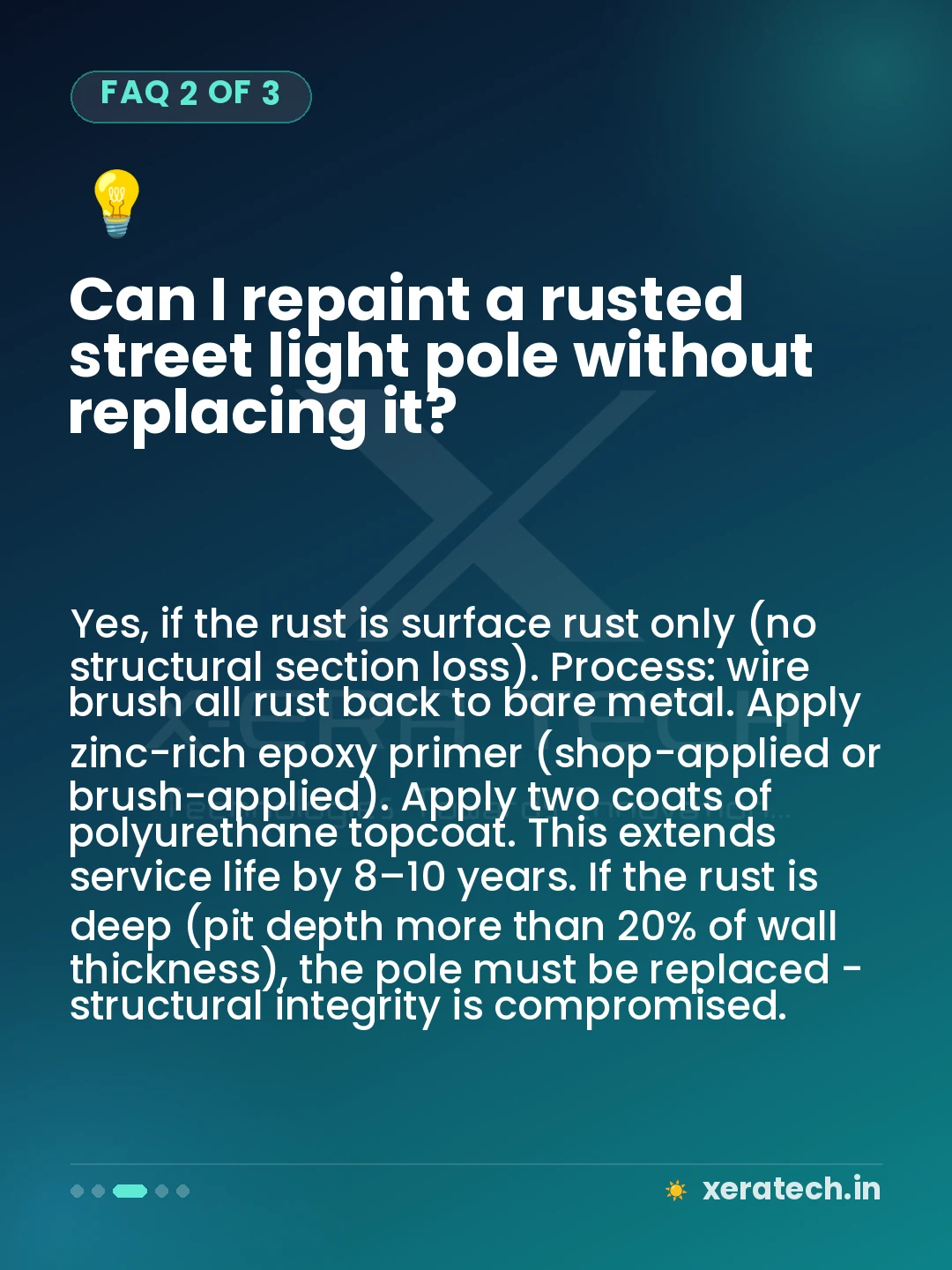

The Konkan coast - Raigad, Ratnagiri, Sindhudurg districts - is C4/C5 corrosivity due to: sea salt aerosol (extends 1–2 km inland in monsoon wind). High humidity (85–95% RH for 6+ months). Cyclone-driven rain creating severe salt spray. Requirements for this zone: hot-dip galvanised poles (IS 2629 standard minimum 610 g/m² zinc coat for poles). All hardware (bolts, nuts, brackets): stainless steel 304 or 316. Luminaire housing: die-cast aluminium (self-passivating) - no bare steel components inside. Cable glands: nylon or stainless steel - zinc-plated steel cable glands corrode in 3–5 years. Inspection: every 2 years, repaint any areas of zinc depletion (grey/white powder = zinc consumed, red rust = steel exposed - replace or patch immediately).
Soil Corrosion at Pole Base
The pole-soil interface is the most vulnerable zone - it sees both moisture and microbial corrosion. The concrete foundation protects the section inside the concrete (well-mixed M15 concrete is alkaline, which passivates steel). The most vulnerable zone is the 50–100mm above ground level - the zone of atmospheric oxygen + ground moisture cycling. Protection for this zone: extend the hot-dip galvanised section 150mm above finished ground level. Apply an additional 2-coat epoxy system from 100mm below ground to 200mm above. Alternatively, use a GRP (Glass Reinforced Plastic) protective sleeve over this zone - common in coastal UK practice, increasingly used in Indian coastal projects.
