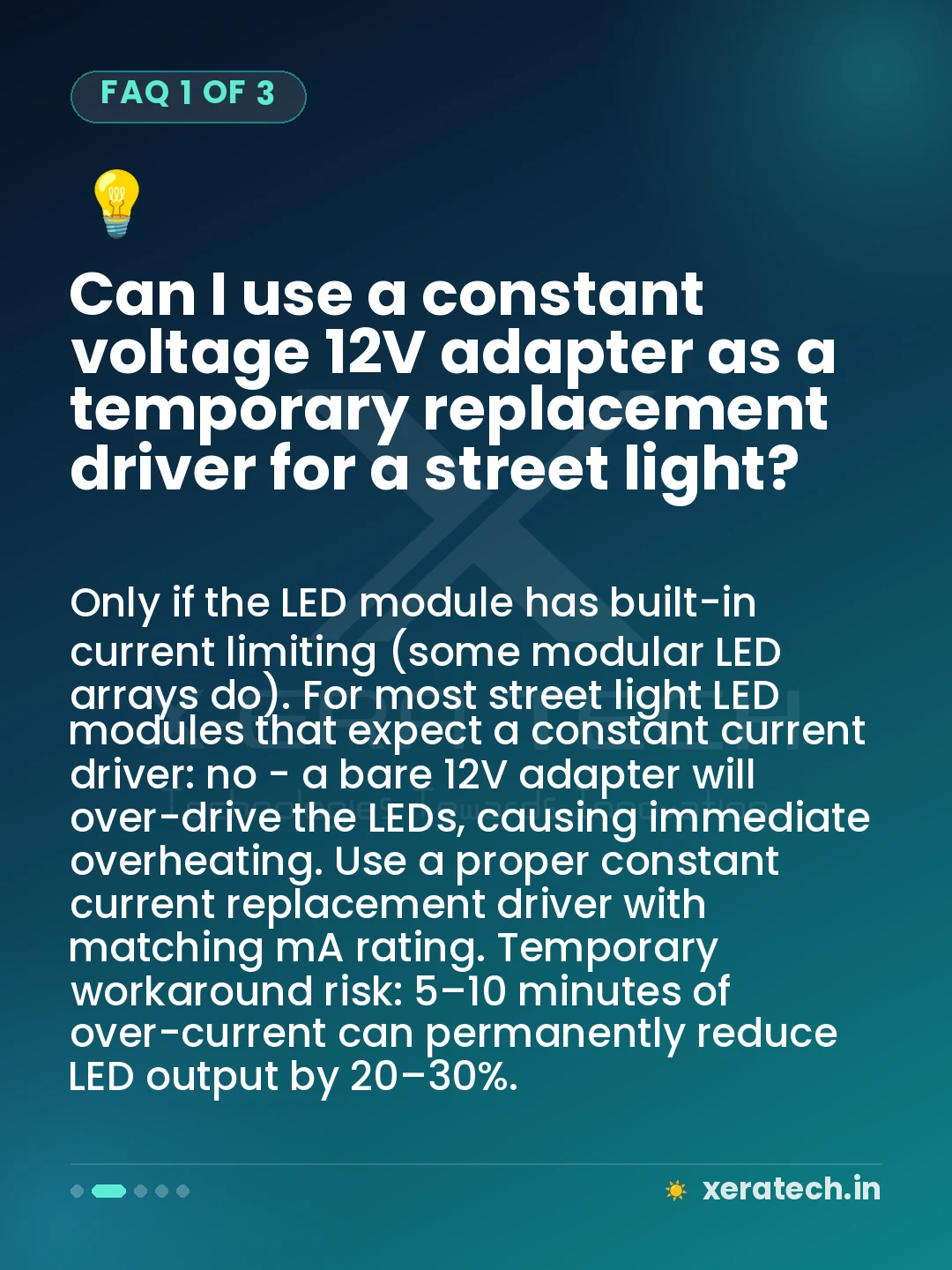

Can I use a constant voltage 12V adapter as a temporary replacement driver for a street light?

Only if the LED module has built-in current limiting (some modular LED arrays do). For most street light LED modules that expect a constant current driver: no - a bare 12V adapter will over-drive the LEDs, causing immediate overheating. Use a proper constant current replacement driver with matching mA rating. Temporary workaround risk: 5–10 minutes of over-current can permanently reduce LED output by 20–30%.

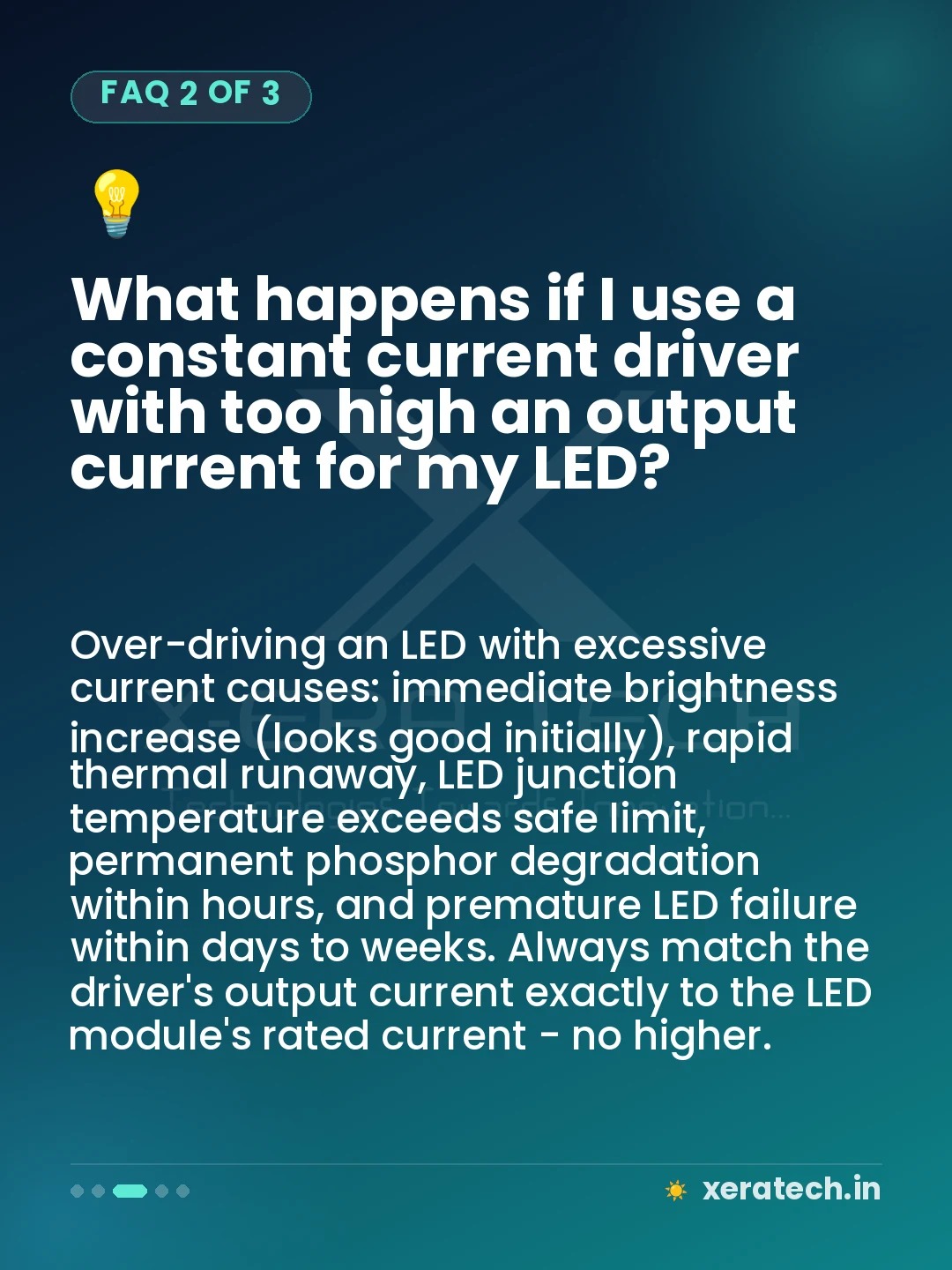

What happens if I use a constant current driver with too high an output current for my LED?

Over-driving an LED with excessive current causes: immediate brightness increase (looks good initially), rapid thermal runaway, LED junction temperature exceeds safe limit, permanent phosphor degradation within hours, and premature LED failure within days to weeks. Always match the driver's output current exactly to the LED module's rated current - no higher.

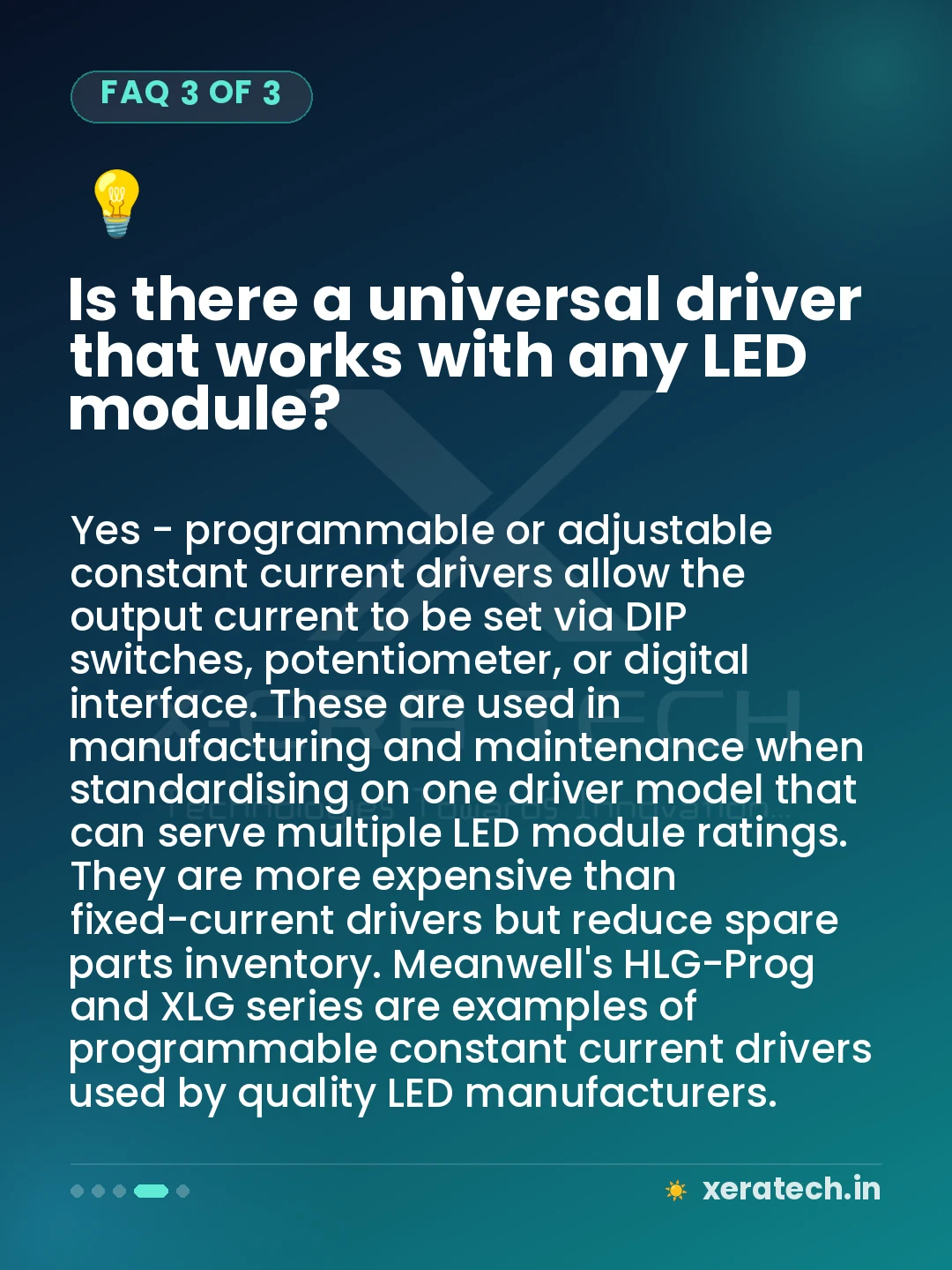

Is there a universal driver that works with any LED module?

Yes - programmable or adjustable constant current drivers allow the output current to be set via DIP switches, potentiometer, or digital interface. These are used in manufacturing and maintenance when standardising on one driver model that can serve multiple LED module ratings. They are more expensive than fixed-current drivers but reduce spare parts inventory. Meanwell's HLG-Prog and XLG series are examples of programmable constant current drivers used by quality LED manufacturers.

What is Constant Current vs Constant Voltage in LED Drivers?

How LEDs Work Electrically

An LED is not a resistor - it does not obey Ohm's Law. Its current increases exponentially with voltage. A tiny increase in voltage causes a large increase in current, which generates heat, which causes the forward voltage to drop, which causes even more current - a thermal runaway that destroys the chip in seconds. This is why LEDs must be driven by a constant current source - one that actively regulates the current to a precise value regardless of voltage variation. The voltage across the LED adjusts itself; the current is held constant by the driver circuit.

Constant Current Driver - The Correct Type for LEDs

A constant current LED driver outputs a fixed, regulated current (specified in milliamps - e.g., 700mA, 1050mA, 1400mA, 2100mA). The output voltage varies automatically to maintain this current as the LED warms up and its forward voltage changes. Key parameters: output current (mA) - must exactly match the LED module's rated current. Output voltage range (V) - must encompass the LED string's forward voltage at operating temperature. Common ratings: 700mA (for lower-power LED strings). 1400mA (for medium-power). 2100mA (for higher-power highway lights). All quality LED street lights, flood lights, and highbay lights use constant current drivers exclusively.

Constant Voltage Driver - When It Is Used

Constant voltage drivers output a fixed voltage (typically 12V or 24V DC) and allow the current to vary. They are used for: LED strip lights (where each section has its own current-limiting resistor). LED signage and decorative lighting with resistor-ballasted LED arrays. They should never be used for LED street light modules or power LED arrays without additional current-limiting circuitry. A constant voltage driver connected directly to a power LED module causes thermal runaway and immediate failure. If you see a product claiming to use a 12V power supply for a 30W street light: verify it has current regulation - a bare 12V adapter without current control will destroy the LED.

How to Verify Your Street Light Has Constant Current

Check the driver label: it should state output current in mA (e.g., 700mA CC). 'CC' designation means constant current. A driver labelled only in V (e.g., 12V DC, 3A) is constant voltage - check if there is additional current regulation downstream. Test with a clamp ammeter: measure the current to the LED module at startup and after 30 minutes of operation. A constant current driver maintains the same reading throughout. A constant voltage setup shows current increasing as the LED heats up (dangerous). Request the driver datasheet: the output specification section should clearly state 'constant current output' with the current value in mA and the compliance voltage range.
